With BOSE Sound System

  1. Remove the front passenger's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
  2. Remove the two mounting nuts from the amplifier brackets, then remove the front stereo amplifier from the front passenger's seat.
  3. Disconnect the front stereo amplifier 26P connector (A) and rear stereo amplifier relay 4P connector (B) from the front stereo amplifier (C) and rear stereo amplifier relay (D).

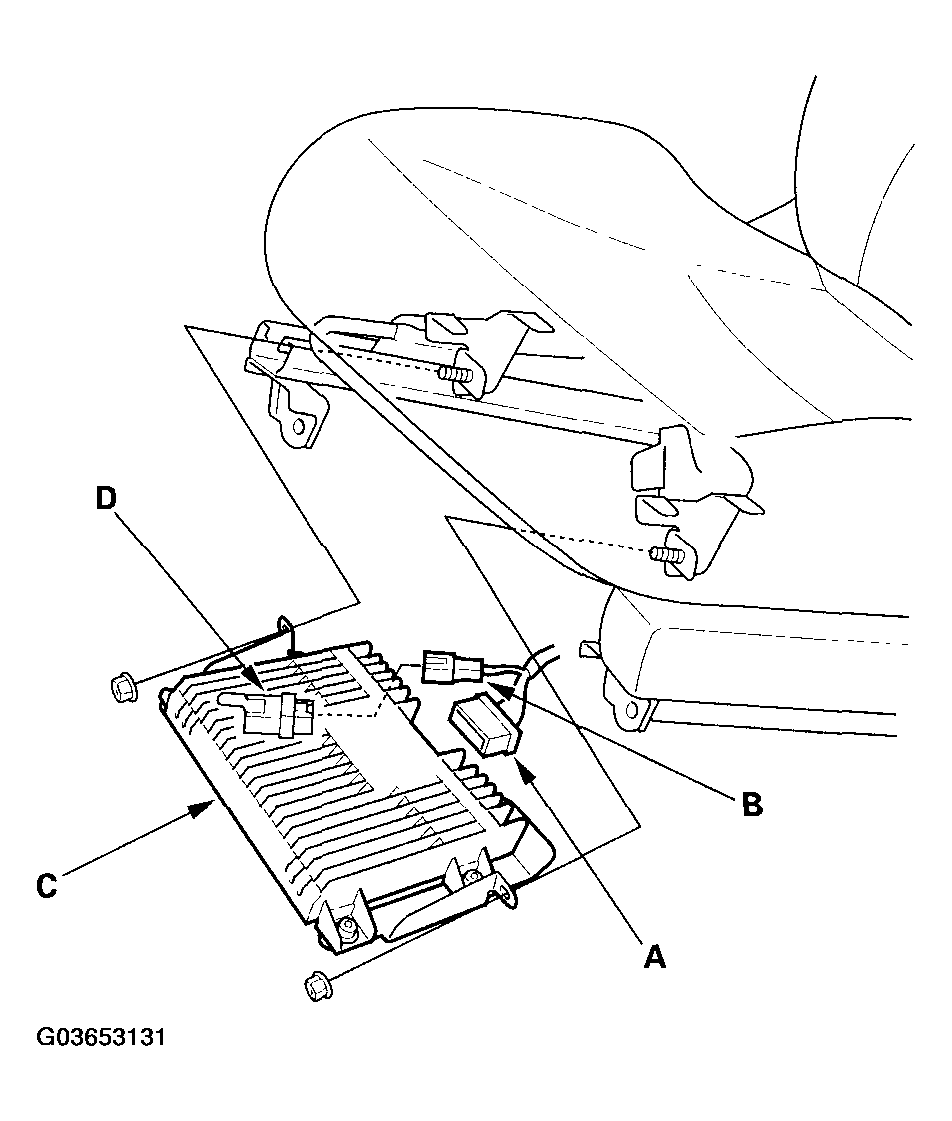

    Fig 1: Disconnecting Front Stereo Amplifier 26P Connector And Front Stereo Amplifier
    G03653131Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the four mounting nuts from the amplifier brackets.

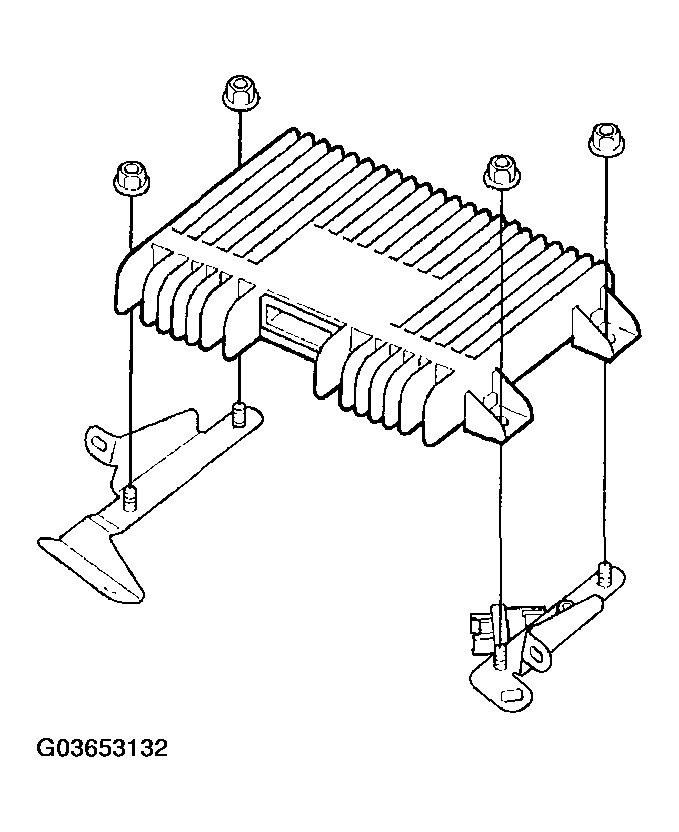

    Fig 2: Removing Mounting Nuts From Amplifier Brackets
    G03653132Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the front stereo amplifier in the reverse order of removal.
