Without BOSE Sound System

NOTE:

Make sure you have the anti-theft code for the radio, then write down the frequencies for the radio's preset buttons.
Remove the dashboard center lower cover (see DASHBOARD CENTER LOWER COVER REMOVAL/INSTALLATION ).
Remove the two mounting bolts, then remove the center panel.

Fig 1: Removing Mounting Bolts And Center Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

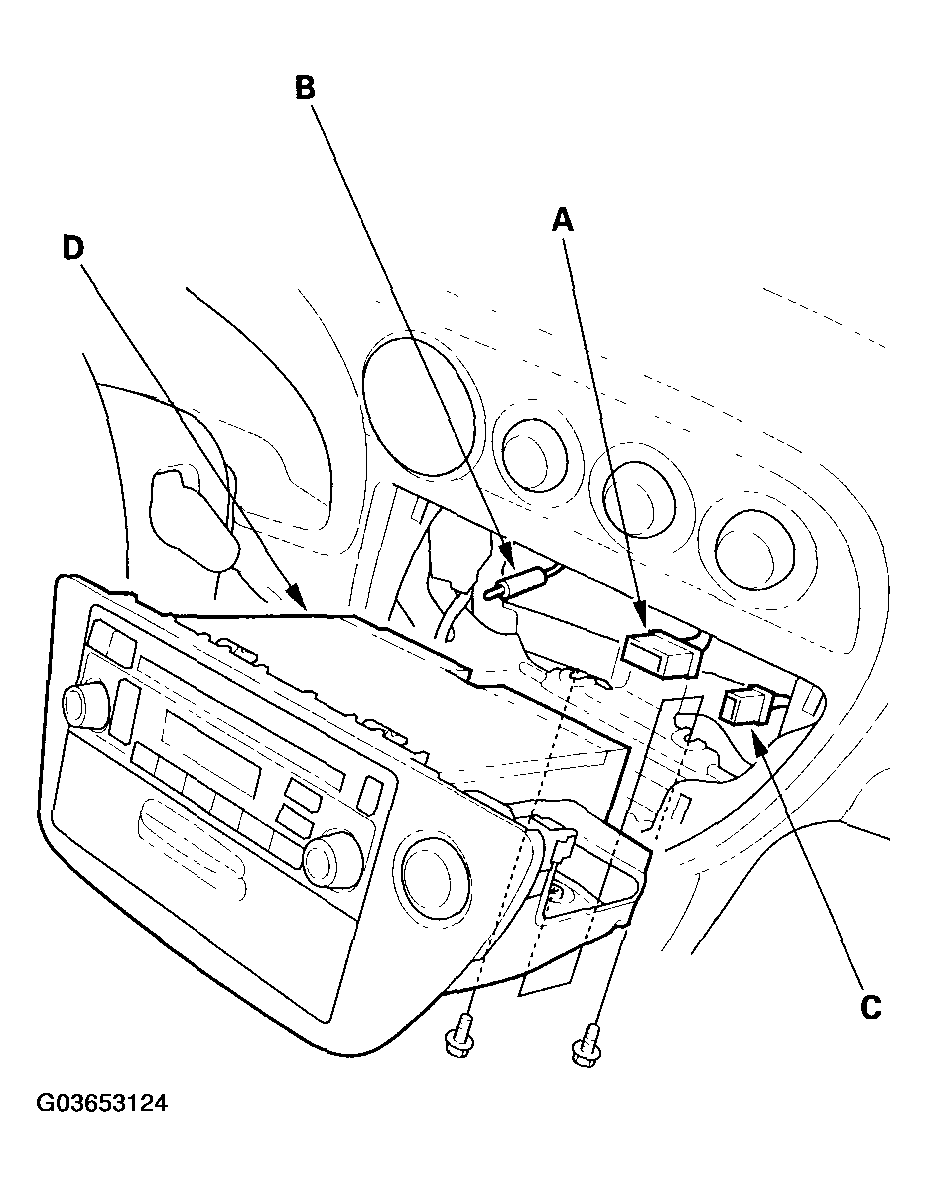

Disconnect the audio unit connector (A), antenna lead (B) and hazard warning switch connector (C), then remove the audio unit (D).

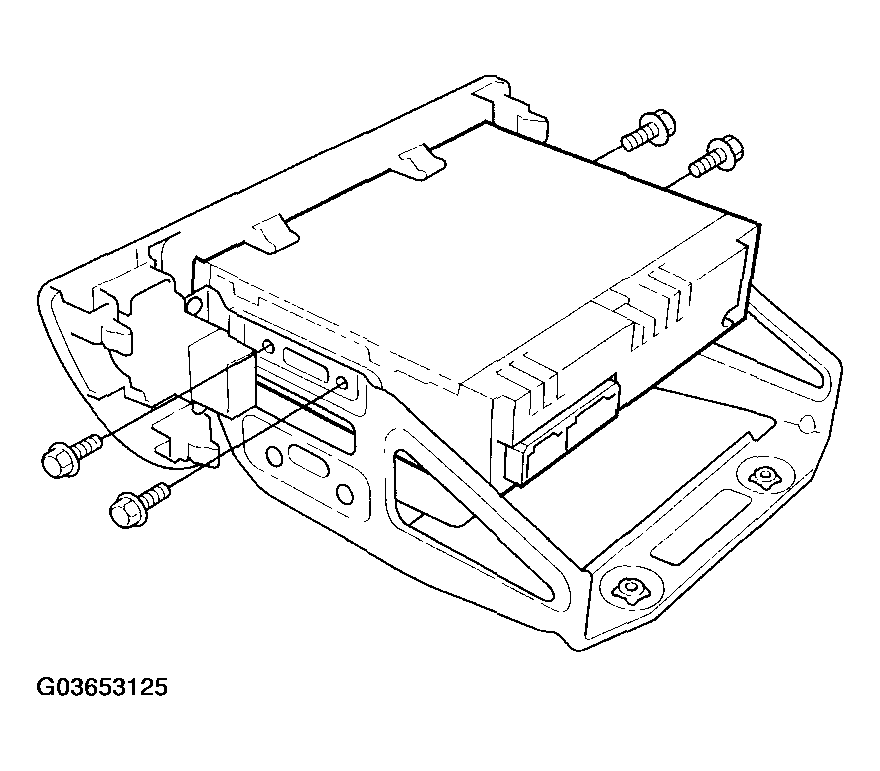

Remove the four mounting bolts and the audio unit from the audio bracket.

Fig 2: Removing Mounting Bolts And Audio Unit From Audio Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the audio unit in the reverse order of removal, and note these items:
- Make sure the audio unit and hazard warning light switch connectors are plugged in properly, and the antenna lead is connected properly.
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
