Intermediate Shaft Installation

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Install a new set ring (A).
M/T model

Fig 1: Identifying Set Ring - M/T Model
Courtesy of AMERICAN HONDA MOTOR CO., INC.

A/T model

Fig 2: Identifying Set Ring - A/T Model
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Clean the areas where the intermediate shaft contacts the differential thoroughly with solvent or brake cleaner, and dry with compressed air.
NOTE: Do not wash the rubber parts with solvent.
Insert the intermediate shaft assembly (A) into the differential until the set ring locks in the groove.
NOTE: Insert the intermediate shaft horizontally to prevent damaging the differential oil seal (B).

Fig 3: Identifying Intermediate Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the flange bolt (A) and two dowel bolts (B).

Fig 4: Flange Bolt And Dowel Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

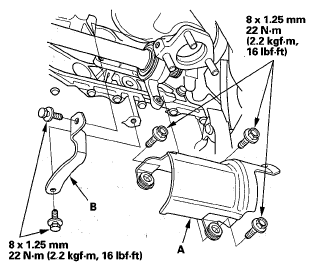

Install the heat shield (A) and rear WU-TWC bracket (B).

Fig 5: Heat Shield And Rear WU-TWC Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the right driveshaft (see DRIVESHAFT INSTALLATION ).
Refill the transmission with the recommended transmission fluid:
- Manual transmission (see TRANSMISSION FLUID INSPECTION AND REPLACEMENT )
- Automatic transmission (see ATF REPLACEMENT )
Test-drive the vehicle.
