Dashboard Side Vent Removal/Installation
NOTE:
- Take care not to scratch the vent panel and related parts.
- The driver's side is shown; the passenger's side is similar.
- Remove these items:
- Driver's: Driver's vent panel (see DRIVER'S VENT PANEL REMOVAL/INSTALLATION )
- Passenger's: Passenger's vent panel (see PASSENGER'S VENT PANEL REMOVAL/INSTALLATION )

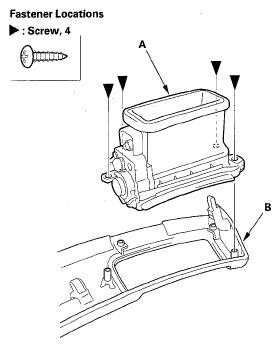

- Remove the screws, then remove the side vent (A) from the vent panel (B).
- Install the side vent in the reverse order of removal.
