Headlight Leveling Motor Replacement
- Remove the headlight assembly (see
HEADLIGHT REPLACEMENT
).
- Turn the HID light cover 45° counterclockwise to remove it from the headlight housing.
- Turn the leveling motor (A) 45° clockwise.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

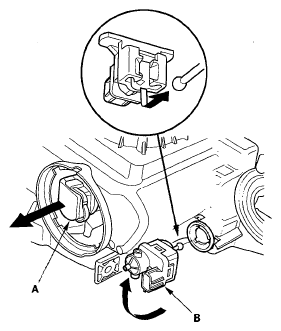

- Pull the headlight reflector (A) slightly, and remove the headlight leveling motor (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install in the reverse order of removal.
- After installation, do the adaptive front lighting control unit learning procedure (see ADAPTIVE FRONT LIGHTING CONTROL UNIT LEARNING PROCEDURE
).
