Adaptive Front Lighting Gearbox Replacement: Installation

Align the gearbox cam (A) with the mark (B) on the gearbox, then install the gearbox in the reverse order of removal.

Fig 1: Aligning Gearbox Cam With Mark On Gearbox
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the adaptive front lighting gearbox cover (A).
NOTE: Check the gasket (B) of the gearbox cover, and replace it if it is destroyed or compressed.

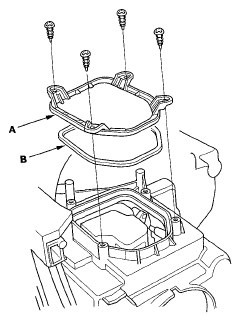

Fig 2: Identifying Adaptive Front Lighting Gearbox Cover And Gasket With Screw
Courtesy of AMERICAN HONDA MOTOR CO., INC.
After installation, do the adaptive front lighting control unit learning procedure (see ADAPTIVE FRONT LIGHTING CONTROL UNIT LEARNING PROCEDURE ).
