Driver's Inner Dashboard Trim Removal/Installation

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Take care not to scratch the dashboard and its related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the driver's inner dashboard trim (A).
1. Gently pull out along the edge beside the audio unit by hand to release the lower hooks (B) and the clip (C).
2. Detach the upper clips (D).

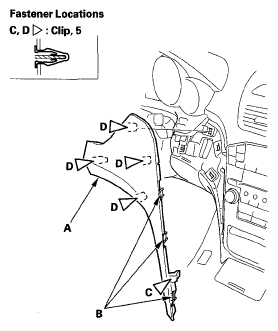

  Fig 1: Identifying Lower Hooks, Upper Clips And Clip
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the trim in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Position the hooks first on installation, then move the clips into place.
- Push the clips and hooks into place securely.
