Center Pocket Removal/Installation

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the audio unit (see AUDIO UNIT REMOVAL/INSTALLATION ).
Remove the bolts (A) and screws (B), then remove the radio brackets (C) from both sides of the audio unit (D).

Fig 1: Identifying Bolts, Screws, Radio Brackets And Audio Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.

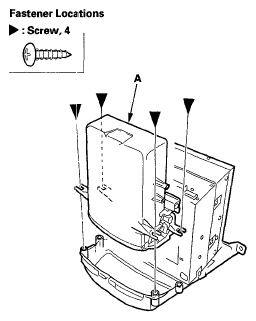

Remove the screws, then remove the center pocket (A).

Fig 2: Identifying Center Pocket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the center pocket in the reverse order of removal.
