Ambient Light Test

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carefully pull down the roof console and disconnect the 20P connector (A).

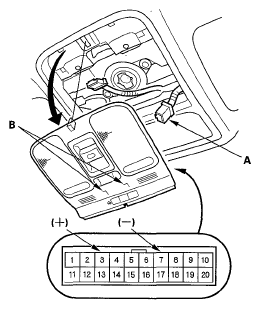

    Fig 1: Identifying Ambient Light
    G05488004Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Connect the roof console 20P connector No. 3 terminal to battery power and No. 7 terminal to body ground. The ambient lights (B) should turn on. If they do not turn on, replace the roof console.
