Rear Strake Replacement

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screw (A) and clips (B), then remove the rear strake (C) from the rear fender cover (D) and side sill panel (E).

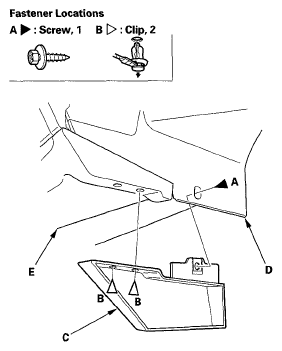

    Fig 1: Identifying Rear Strake, Rear Fender Cover And Side Sill Panel
    G05487496Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the strake in the reverse order of removal, and note these items:
    • If the clips are damaged or stress-whitened, replace them with new ones.
    • Push the clips into place securely.
