Accessory Power Sockets
>>
Component Location Index
Component Location Index

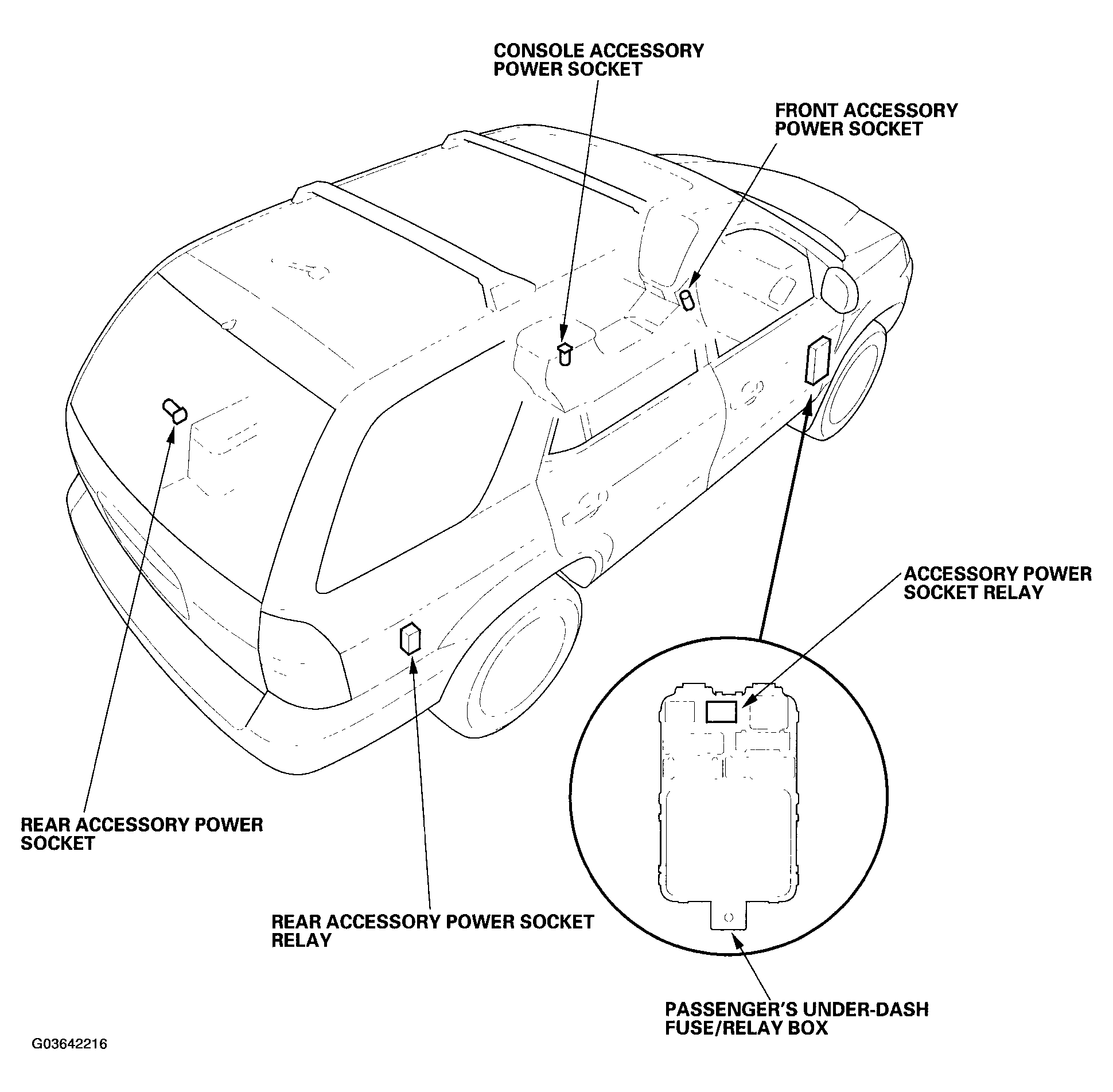

Fig 1: Locating Accessory Power Sockets Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
