Component Location Index

NOTE: For the Driving Position Memory System (DPMS), refer to the DRIVING POSITION MEMORY SYSTEMS (DPMS) .

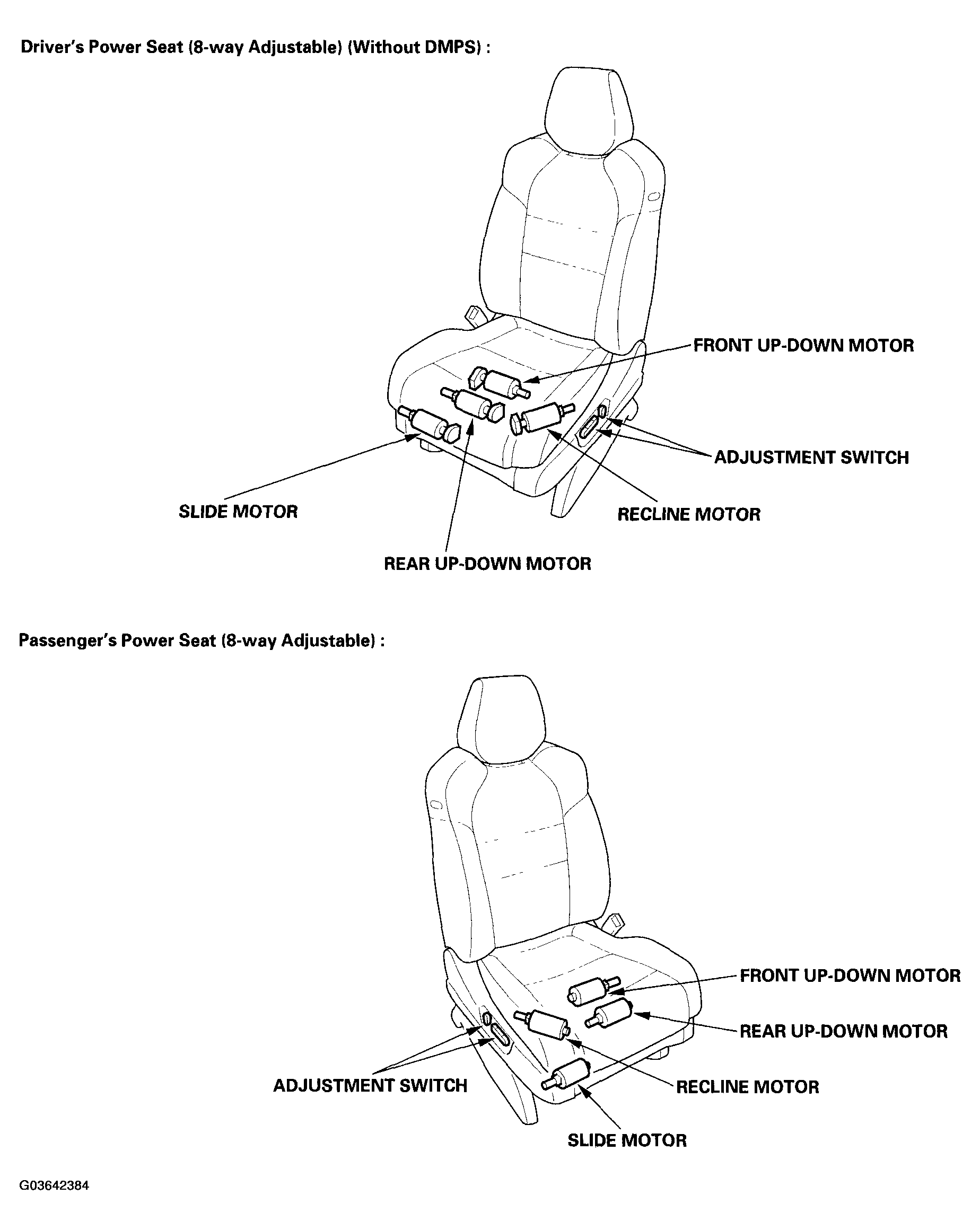

Fig 1: Identifying Power Seat Components
G03642384Courtesy of AMERICAN HONDA MOTOR CO., INC.
