Cargo Area Carpet Replacement
NOTE:
- Put on gloves to protect your hands.
- Be careful not to damage the interior trim parts.
- Remove these items:
- Third row seat, both sides (see THIRD ROW SEAT REMOVAL/INSTALLATION )
- Rear trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE LOWER AREA )
- Rear side trim panel, both sides (see TRIM REMOVAL/INSTALLATION - REAR SIDE LOWER AREA )

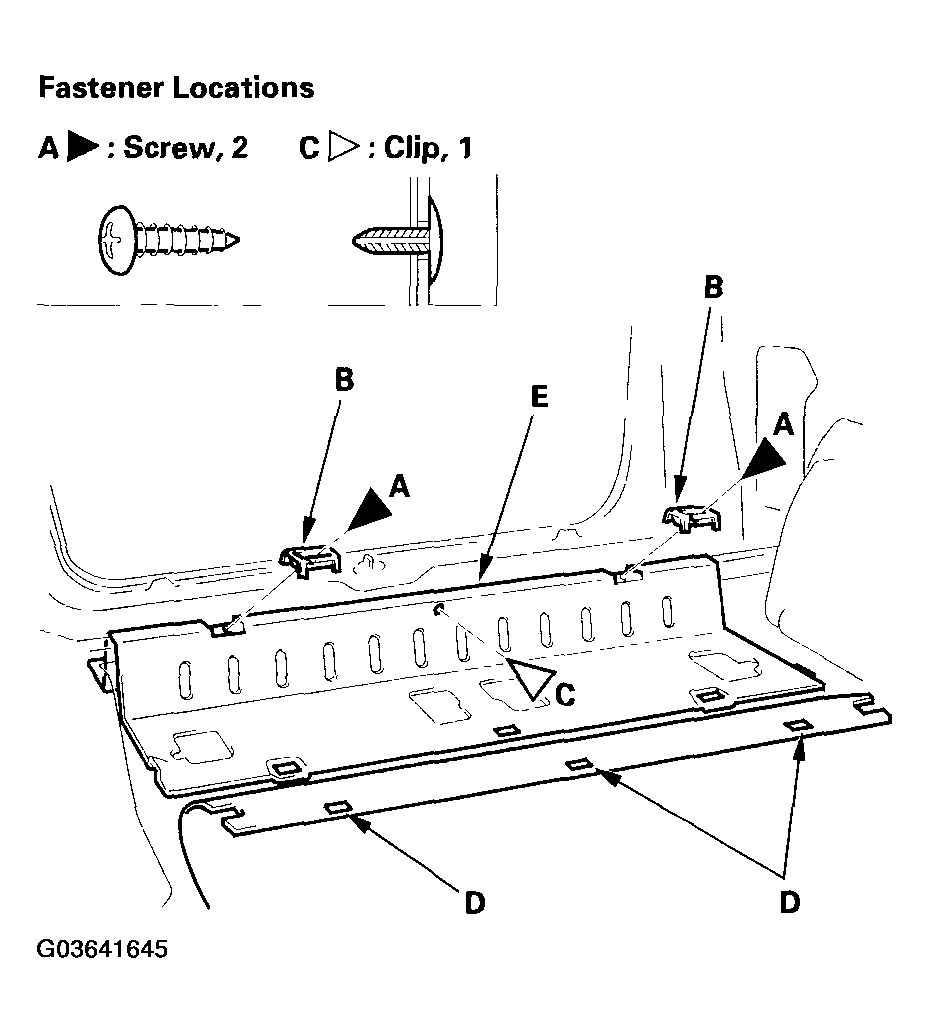

- Remove the screws (A), then remove the hinges (B).
- Detach the clip (C) and release the fasteners (D), then remove the cargo area carpet (E).
- Install the cargo area carpet in the reverse order of removal, and replace the clip if it's damaged.
