Console Armrest Removal/ Installation

NOTE: Take care not to scratch the console and armrest.

Remove the console rear trim (see step 6 in CENTER CONSOLE REMOVAL/INSTALLATION ).

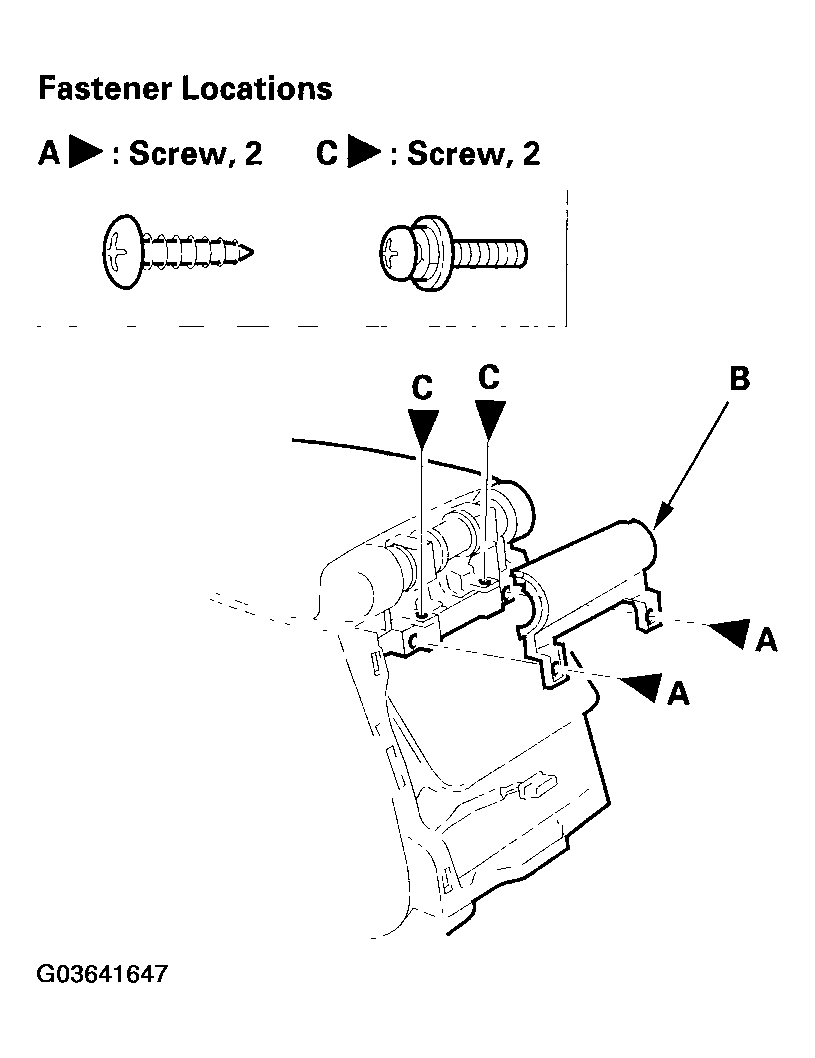

Remove the screws (A), then remove the rear hinge cover (B). Remove the hinge mounting screws (C).

Fig 1: Removing Rear Hinge Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

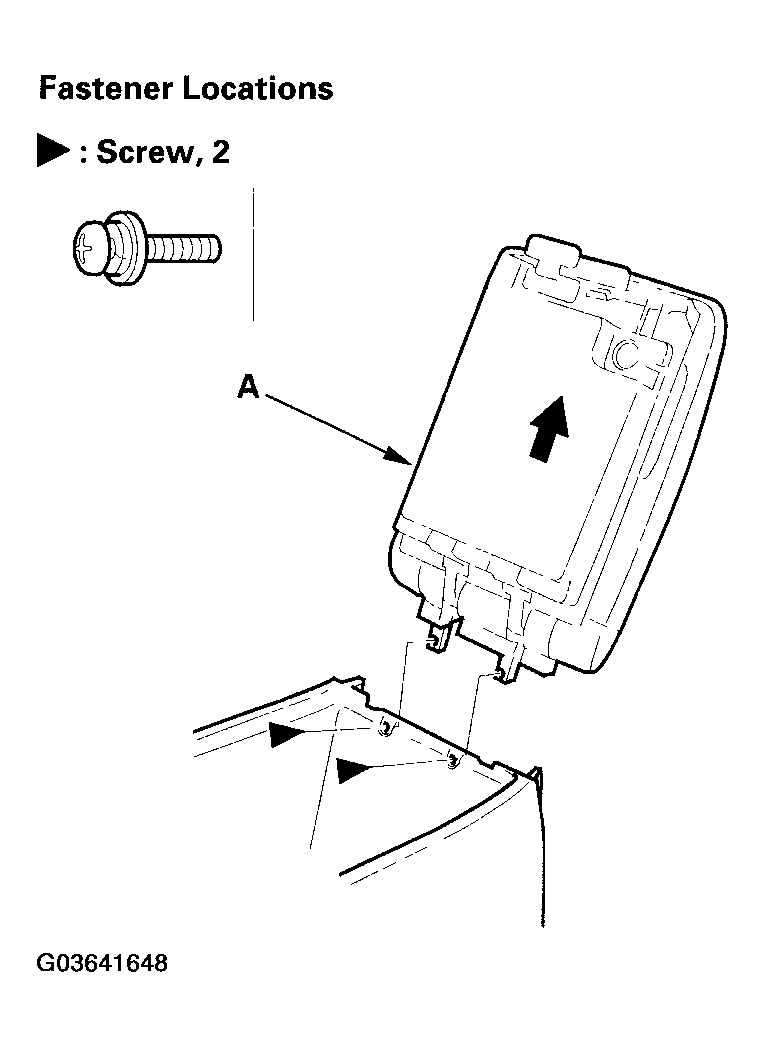

Open the armrest (A) and remove the hinge mounting screws, then remove the armrest.

Fig 2: Opening And Removing Armrest
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the armrest in the reverse order of removal.
