CD Storage Box Removal and Installation

NOTE: Take care not to scratch the console.

Wrap the front divider (A) with a shop towel, then grip it with a pair of pliers. Pull the CD storage box (B) up to detach the clips, then remove it.

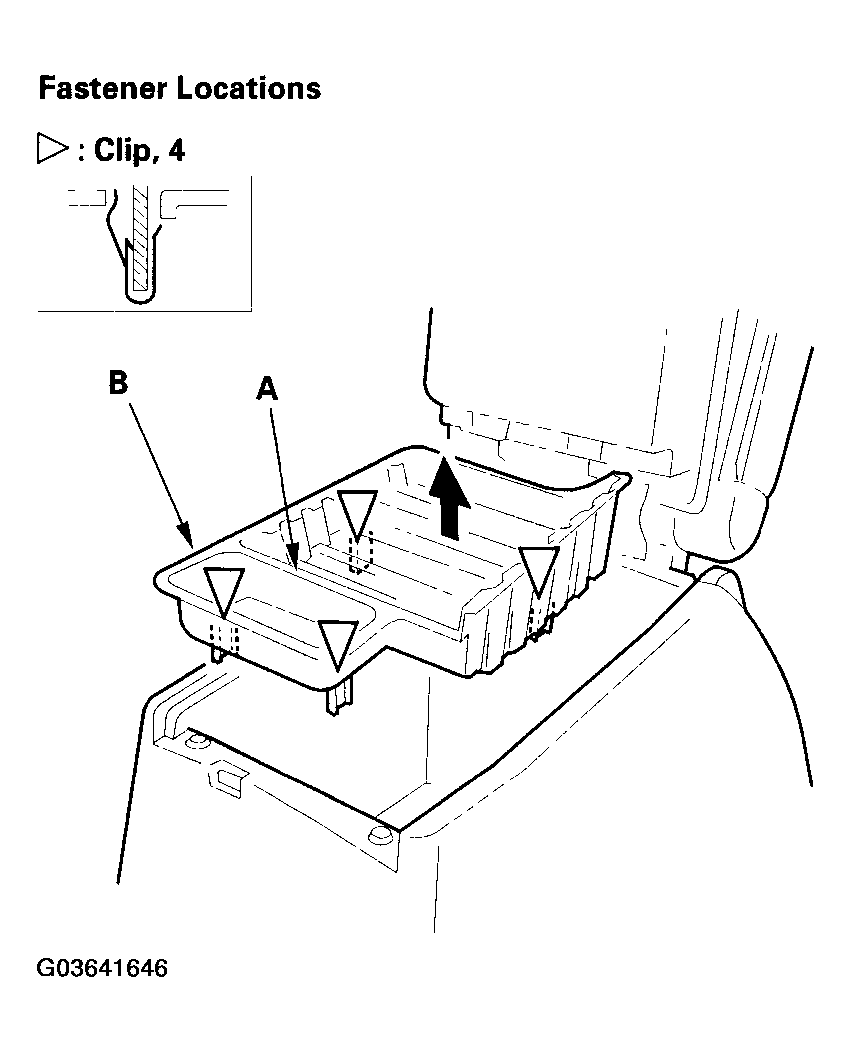

Fig 1: Pulling CD Storage Box
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the CD storage box in the reverse order of removal, and push down on the clip portions of the box securely.
