Intake Air Bypass Control Thermal Valve Replacement

  1. Remove the engine cover; '04-05 models (see REMOVAL ('04-05 MODELS) ), '06-08 models (see REMOVAL ('06-08 MODELS) ).
  2. Remove the throttle cable bracket.
  3. Disconnect the hoses (A).

    '04-05 models

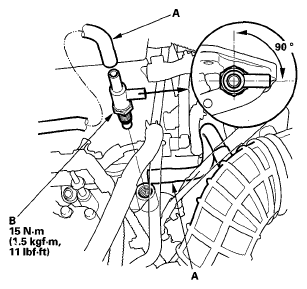

    Fig 1: Hoses W/Torque Specification - '04-05 Models
    G05490845Courtesy of AMERICAN HONDA MOTOR CO., INC.

    '06-08 models

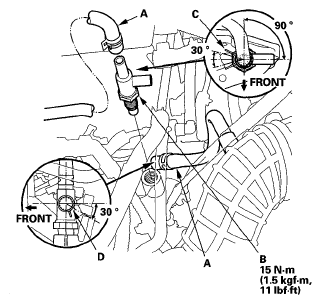

    Fig 2: Hoses W/Torque Specification - '06-08 Models
    G05490846Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the intake air bypass control thermal valve (B).
  5. Install the parts in the reverse order of removal.
    NOTE:
    • Position the valve angle as shown.
    • '06-08 models:

      Make sure the center of clamp (C) and the lever end of clamp (D) are the position within the range shown.
