Component Location Index

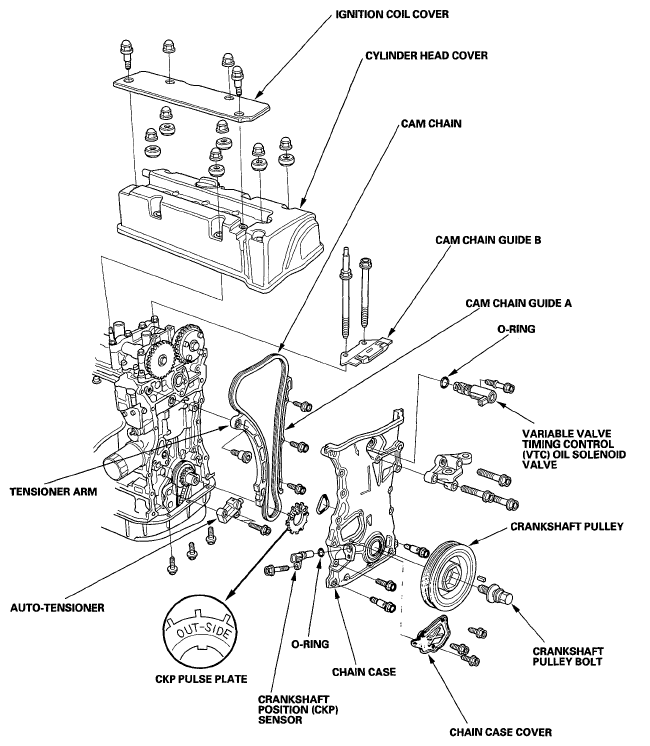

Fig 1: Identifying Engine Replacement Components Location (1 Of 3)
G05490037Courtesy of AMERICAN HONDA MOTOR CO., INC.

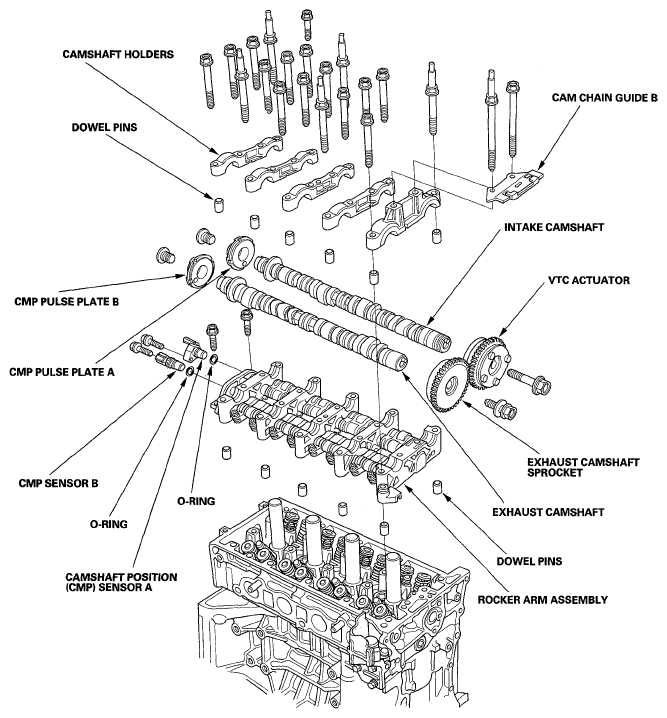

Fig 2: Identifying Engine Replacement Components Location (2 Of 3)
G05490038Courtesy of AMERICAN HONDA MOTOR CO., INC.

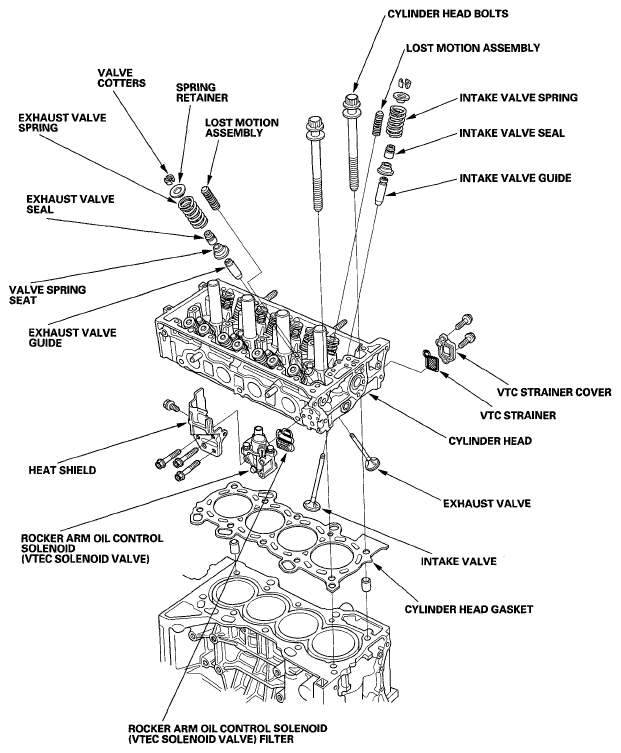

Fig 3: Identifying Engine Replacement Components Location (3 Of 3)
G05490039Courtesy of AMERICAN HONDA MOTOR CO., INC.
