2004
>>
TSX Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
VSA (Vehicle Stability Assist) System
>>
Circuit Diagram
Circuit Diagram

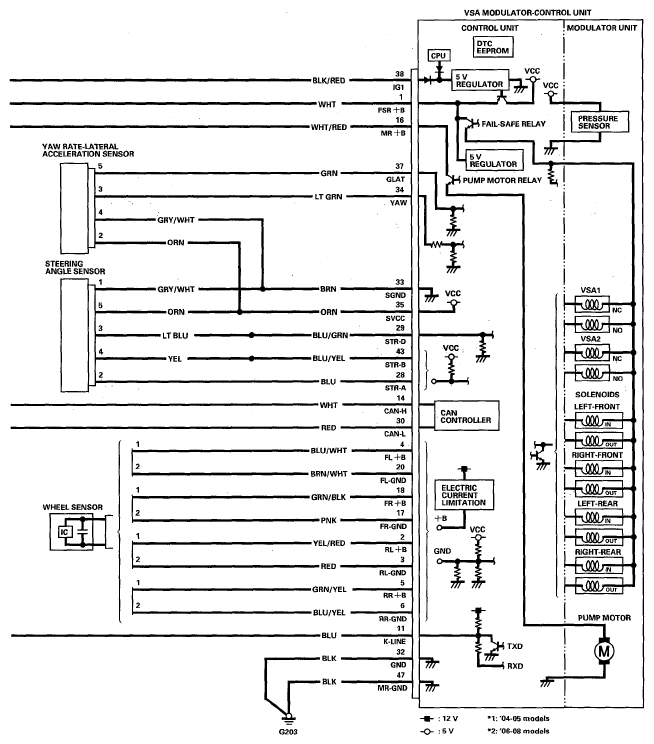

Fig 1: VSA Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

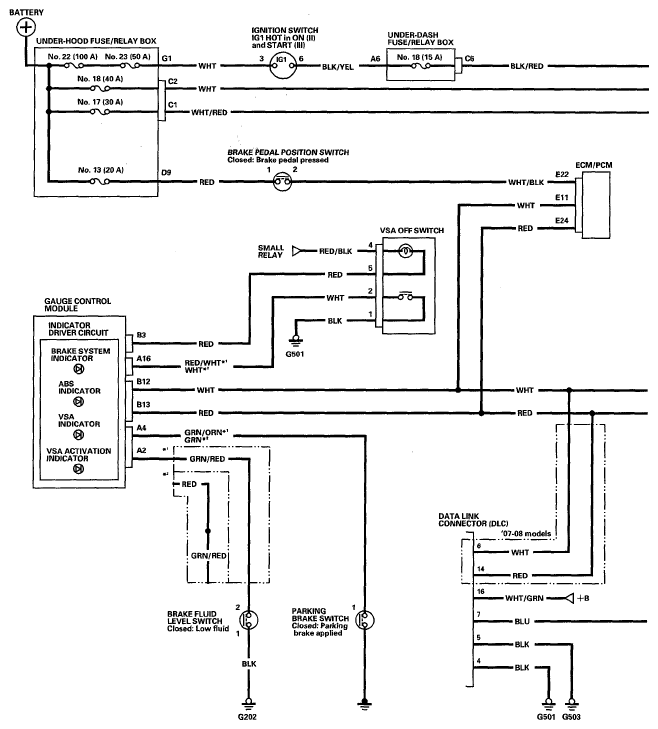

Fig 2: VSA Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

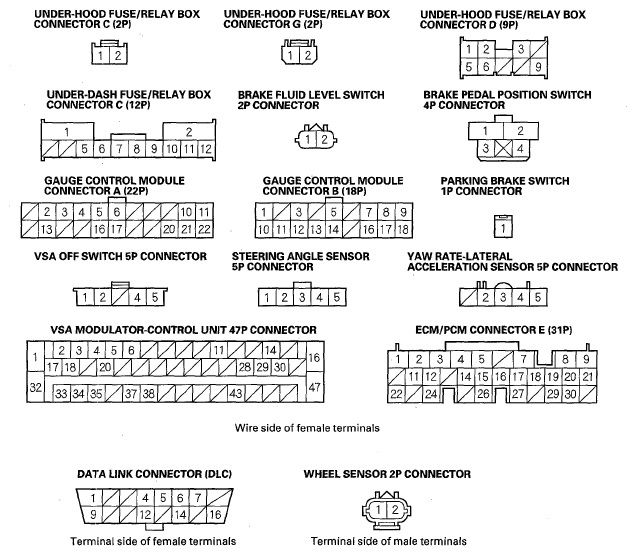

Fig 3: VSA Connector Terminal Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
