Subframe Replacement
>>
Rear Subframe Torque
Rear Subframe Torque
After removing the subframe mounting special bolts, be sure to replace them with new ones.

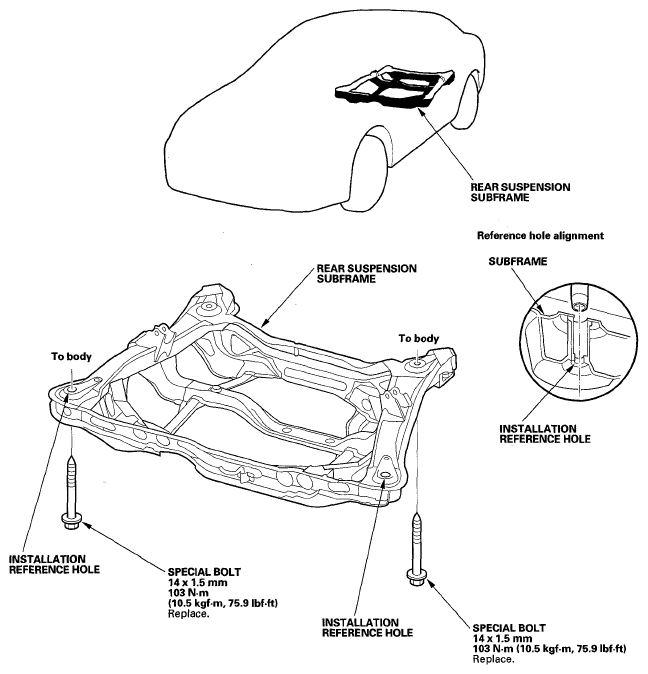

Fig 1: Rear Subframe Mounting Special Bolts With Torque Specifications
