Exploded View

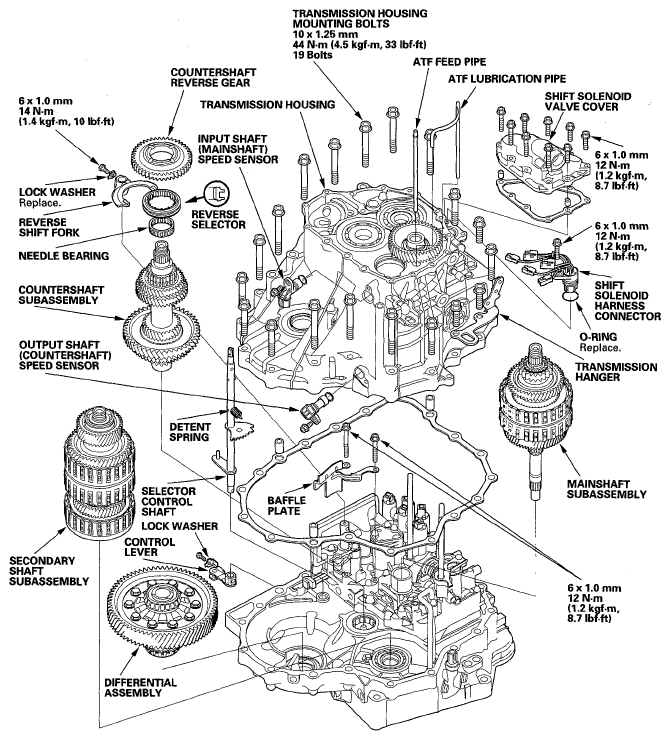

Fig 1: Exploded View Of Shaft Assembly And Housing W/Torque Specifications
G05491650Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE: Refer to the exploded view as needed during the following procedure.
  1. Install the differential assembly in the torque converter housing.
  2. Install the baffle plate on the servo body.
  3. Assemble the mainshaft, the countershaft, and the secondary shaft.
  4. Join the mainshaft subassembly (A), the countershaft subassembly (B), and the secondary shaft subassembly (C) together, and install them in the torque converter housing. Do not bump the countershaft on the baffle plate (D).

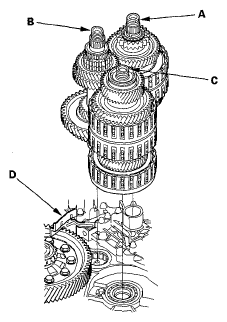

    Fig 2: Identifying Mainshaft Subassembly, Countershaft Subassembly And Secondary Shaft Subassembly
    G05491651Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Make sure that the countershaft and the differential are clear of the baffle plate.
  6. If the detent arm was removed, install the detent arm (A) with the arm collar (B) on the servo body (C), and install a new lock washer (D) by aligning its cutout (E) with the projection (F) of the servo body. Install and tighten the bolt, then bend the lock tab of the lock washer against the bolt head.
    Fig 3: Detent Arm, Arm Collar, Lock Washer And Servo Body W/Torque Specification
    G05491652Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the control shaft (A) in the torque converter housing aligning the manual valve lever pin (B) on the control shaft with the guide of the manual valve (C). Pull the manual valve gently when aligning the manual valve with the control shaft.
    Fig 4: Identifying Control Shaft, Manual Valve Lever Pin And Manual Valve
    G05491653Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Hook the detent spring (A) to the detent arm (B).
    Fig 5: Hooking Detent Spring To Detent Arm
    G05491654Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Turn the shift fork shaft (A) so the large chamfered hole (B) is facing the fork bolt hole (C) of the shift fork (D).
    Fig 6: Identifying Shift Fork Shaft, Lock Washer, Fork Bolt Hole And Shift Fork
    G05491655Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Install the shift fork and the reverse selector together on the shift fork shaft and the countershaft. Secure the shift fork to the shift fork shaft with the lock bolt and a new lock washer (E), then bend the lock tab of the lock washer against the bolt head.
  11. Install the needle bearing and the countershaft reverse gear on the countershaft.
  12. Install the reverse idler gear in the transmission housing (see REVERSE IDLER GEAR REMOVAL AND INSTALLATION  ).
  13. Install the idler gear shaft (see IDLER GEAR SHAFT REMOVAL AND INSTALLATION  ), if it was removed.
  14. Install the three dowel pins (A) and a new gasket (B) on the torque converter housing (C).

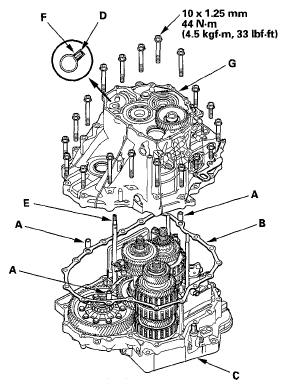

    Fig 7: Dowel Pins, Gasket, Torque Converter Housing, Spring Pin And Selector Control Shaft W/Torque Specification
    G05491656Courtesy of AMERICAN HONDA MOTOR CO., INC.
  15. Align the spring pin (D) of the selector control shaft (E) with the transmission housing groove (F) by turning the selector control shaft. Do not squeeze the end of the selector control shaft tips together when turning the shaft. If the tips are squeezed together, it will cause a faulty shift position signal or position due to the play between the selector control shaft and the transmission range switch.
  16. Place the transmission housing (G) on the torque converter housing. Do not install the input shaft (mainshaft) speed sensor and the output shaft (countershaft) speed sensor before installing the transmission housing on the torque converter housing.
  17. While expanding the snap ring of the secondary shaft bearing using the snap ring pliers, push the transmission housing down to start the secondary shaft bearing through the snap ring. Then release the pliers. While rotating the reverse idler gear with a screwdriver, push down the housing until it bottoms and the snap ring snaps in place in the secondary shaft bearing snap ring groove.
    Fig 8: Expanding Snap Ring Of Secondary Shaft Bearing Using Snap Ring Pliers
    G05491657Courtesy of AMERICAN HONDA MOTOR CO., INC.
  18. Check that the secondary shaft bearing snap ring (A) is seated in the bearing and housing groove, and that the ring end gap (B) is correct.
    Fig 9: Identifying Ring End Gap
    G05491658Courtesy of AMERICAN HONDA MOTOR CO., INC.
  19. Install the transmission housing mounting bolts along with the transmission hanger, and tighten the 19 bolts in two or more steps in a crisscross pattern.
  20. Install the input shaft (mainshaft) speed sensor (A) and the output shaft (countershaft) speed sensor (B) with new O-rings (C).
    Fig 10: Input Shaft (Mainshaft) Speed Sensor And Output Shaft (Countershaft) Speed Sensor W/Torque Specifications
    G05491659Courtesy of AMERICAN HONDA MOTOR CO., INC.
  21. Install the shift solenoid harness connector (F) in the transmission housing with a new O-ring (G).
    Fig 11: Shift Solenoid Harness Connector W/Torque Specification
    G05491660Courtesy of AMERICAN HONDA MOTOR CO., INC.
  22. Connect the connector (YEL, WHT, and WHT wires) to shift solenoid valve D.
  23. Connect the connectors to the respective valves:
    • BLU wire to shift solenoid valve A.
    • ORN wire to shift solenoid valve B.
    • GRIM wire to shift solenoid valve C.
    • RED wire to shift solenoid valve E.
  24. Install the shift solenoid valve cover (A) with the two dowel pins (B) and a new gasket (C).
    Fig 12: Shift Solenoid Valve Cover, Dowel Pins And Gasket W/Torque Specification
    G05491661Courtesy of AMERICAN HONDA MOTOR CO., INC.
