ATF Cooler Hose Replacement

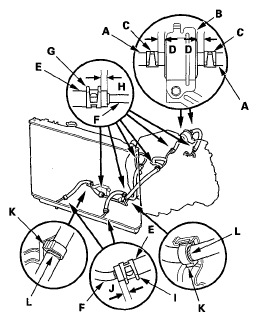

- Slide the ATF cooler hoses (A) on the ATF filter (B) until they touch the filter housing.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Secure the hoses with the clips (C) at 6-8 mm (0.24-0.31 in.) (D) from the filter housing.
- Slide the ATF cooler hoses (E) over the ATF cooler lines (F).
- Secure the hoses with the clips (G) at 6-8 mm (0.24-0.31 in.) (H) from the hose ends, and secure the hoses at the ATF cooler with the clips (I) at 2-4 mm (0.08-0.16 in.) (J) from the hose ends.
- Install the hoses on the clamps (K) at the marks (L).
