Component Location Index

'04-06 Models

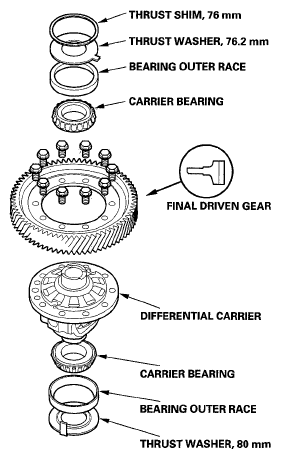

Fig 1: Identifying A/T Differential Components Location ('04-06 Models)
G05491681Courtesy of AMERICAN HONDA MOTOR CO., INC.

'07-08 Models

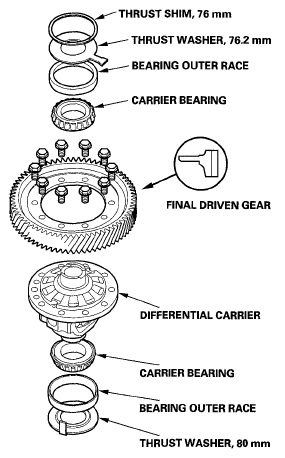

Fig 2: Identifying A/T Differential Components Location ('07-08 Models)
G05491682Courtesy of AMERICAN HONDA MOTOR CO., INC.
