Resonator Removal/Installation

  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
  2. Remove the intake air cover (A), then remove the intake air duct (B).

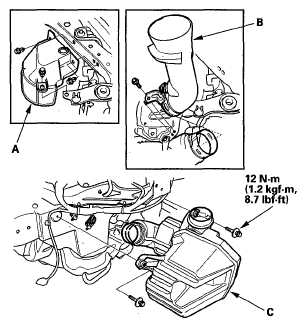

    Fig 1: Intake Air Cover And Intake Air Duct W/Torque Specification
    G05490839Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the resonator (C).
  4. Install the parts in the reverse order of removal.
