Engine Mount Replacement

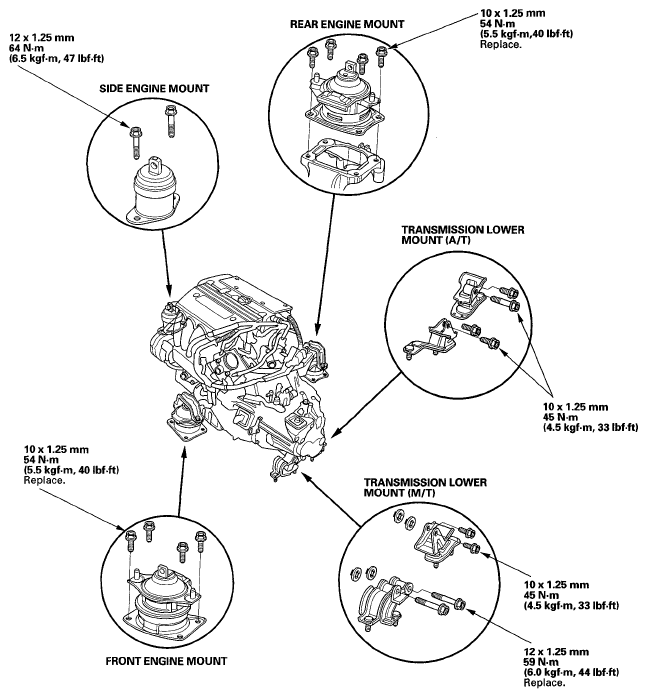

Fig 1: Engine Mounts W/Torque Specifications

G05490035

Courtesy of AMERICAN HONDA MOTOR CO., INC.
