EVAP Canister Replacement

  1. Remove the EVAP canister cover (A).
    Fig 1: Identifying EVAP Canister Cover
    G05490891Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the hoses (A), the FTP sensor 3P connector (B), and the EVAP canister vent shut valve 2P connector (C).

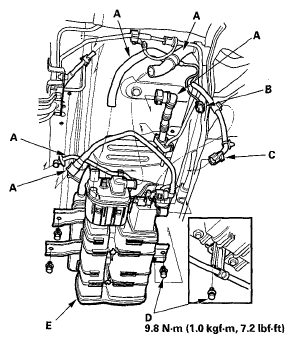

    Fig 2: Hoses, FTP Sensor 3P Connector And EVAP Canister Vent Shut Valve 2P Connector W/Torque Specification
    G05490892Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (D).
  4. Remove the EVAP canister assembly (E).
  5. Remove the EVAP canister bracket (A).

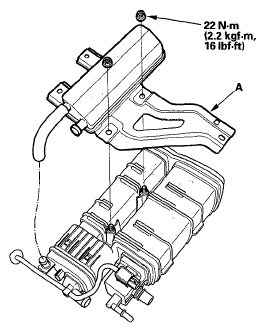

    Fig 3: EVAP Canister Bracket W/Torque Specification
    G05490893Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the parts in the reverse order of removal.
