Relays And Control Unit Locations: Dashboard

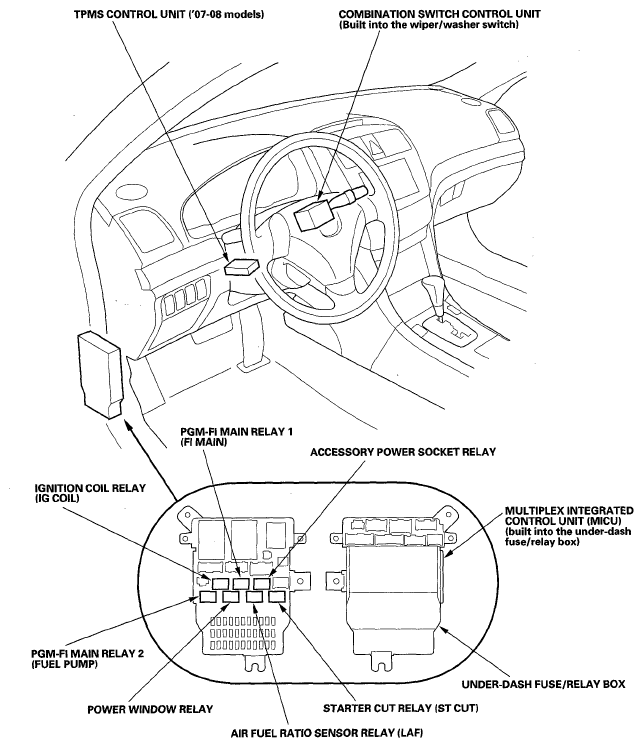

Fig 1: Identifying Dashboard Parts Location (1 Of 3)

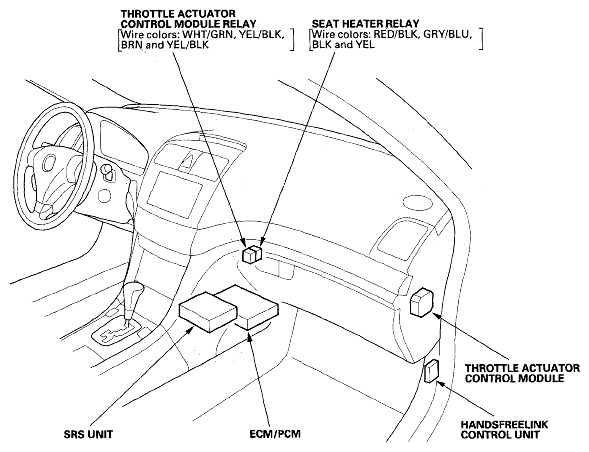

Fig 2: Identifying Dashboard Parts Location (2 Of 3)

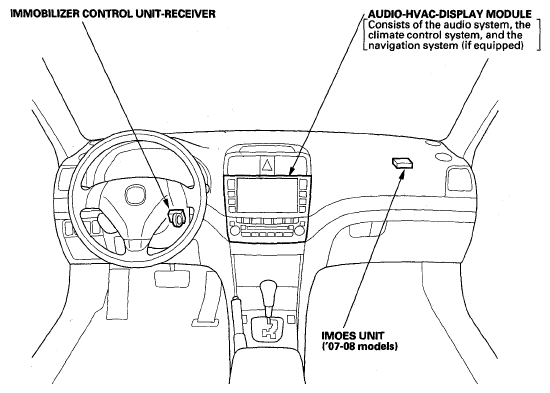

Fig 3: Identifying Dashboard Parts Location (3 Of 3)
