Select/Reset/Information Switch Connector End View

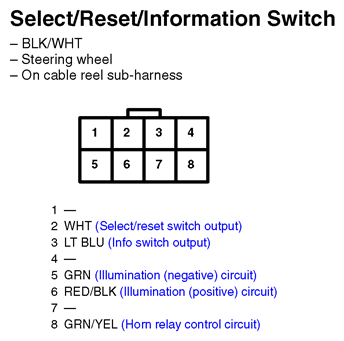

Fig 1: Select/Reset/Information Switch Connector End View

G11249730
