Navigation Unit (Navigation) Connector End View

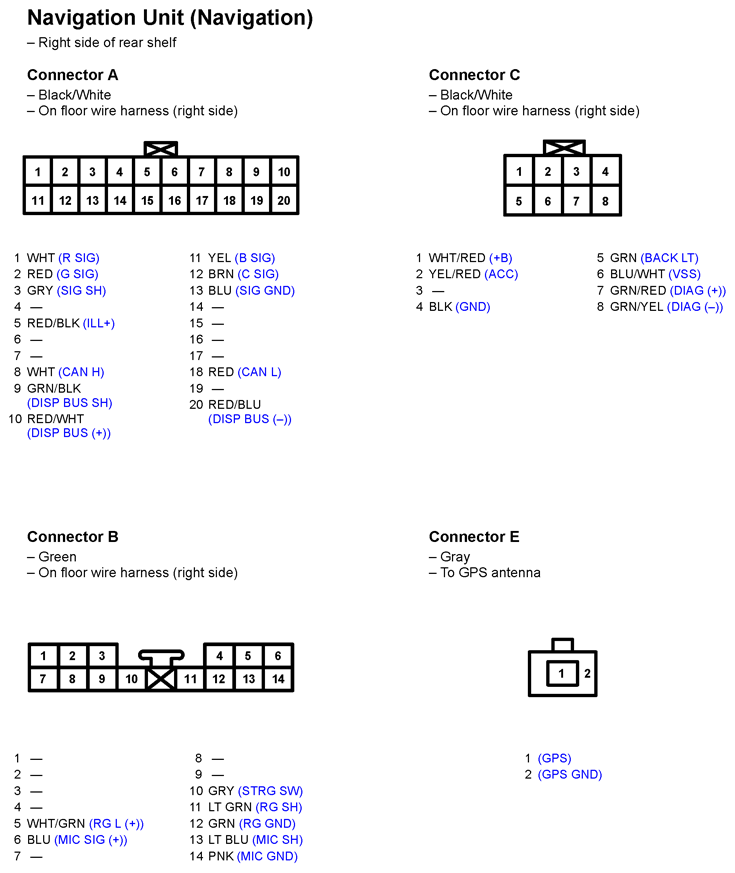

Fig 1: Navigation Unit (Navigation) Connector End View

G11249498
