Driving Position Memory Switch Connector End View

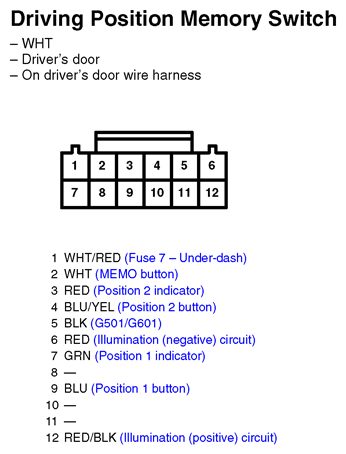

Fig 1: Driving Position Memory Switch Connector End View
G11249741
