Steering Wheel Installation

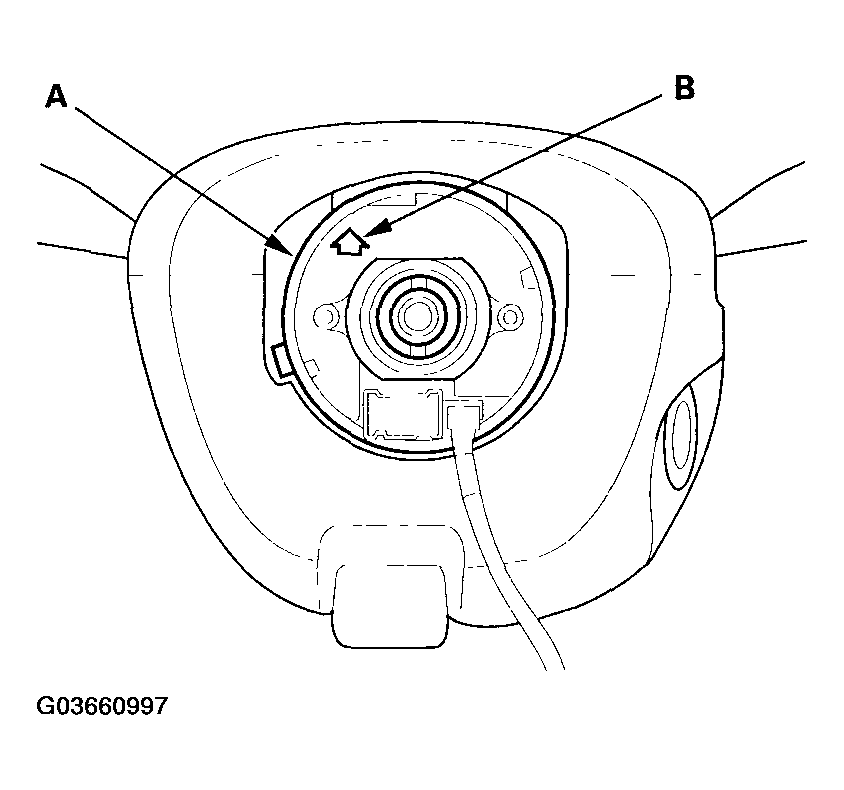

- Before installing the steering wheel, make sure the front wheels are aligned straight ahead, then center the cable reel (A). Do this by first rotating the cable reel clockwise until it stops. Then rotate it counterclockwise about three full turns. The arrow mark (B) on the cable reel label point should point straight up.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

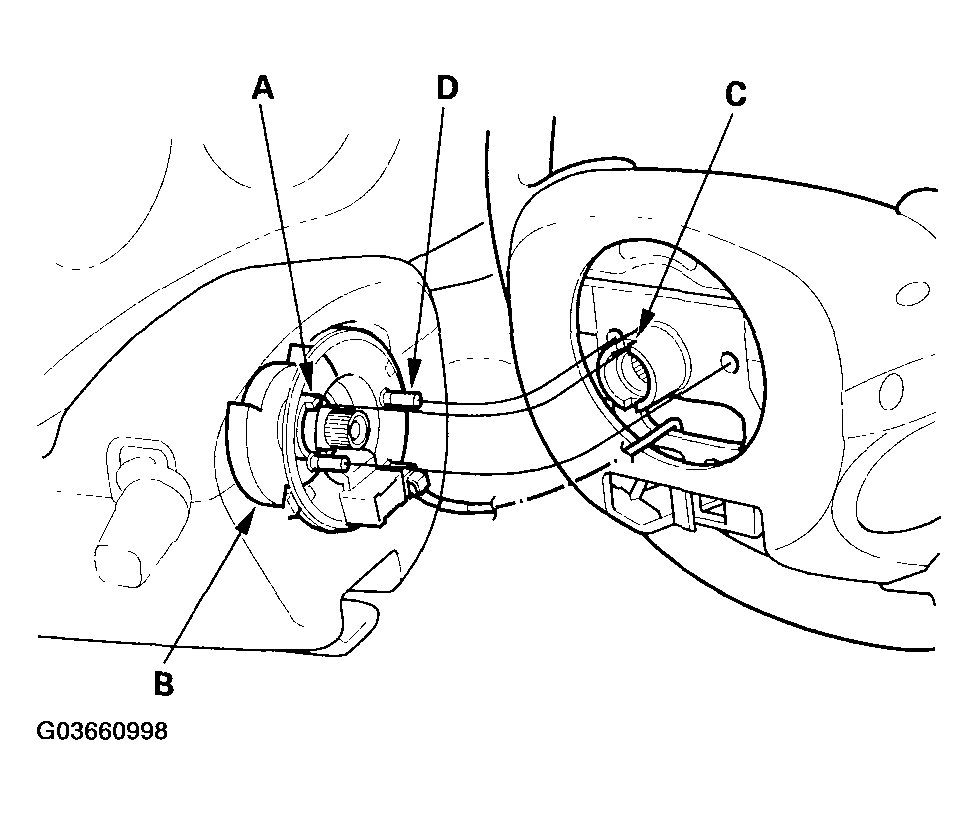

- Position the two tabs (A) of the turn signal cancelling sleeve (B) as shown in Fig 2. Install the steering wheel on to the steering column shaft, making sure the steering wheel hub (C) engages the pins (D) of the cable reel and tabs of the turn signal canceling sleeve. Do not tap on the steering wheel or steering column shaft when installing the steering wheel.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

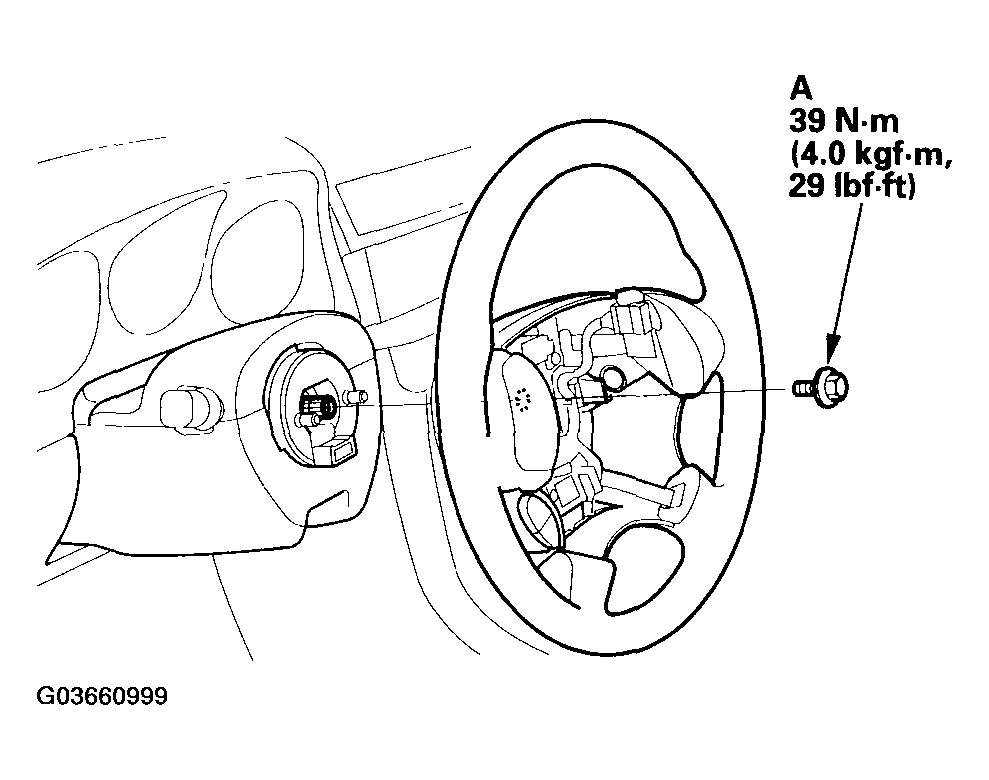

- Install the steering wheel bolt (A) and tighten it to the specified torque. Connect the cable reel subharness connector. Make sure the wire harness is routed and fastened properly.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the driver's airbag, and confirm that the system is operating properly (see DRIVER'S AIRBAG REPLACEMENT
).
- Enter the anti-theft codes for the radio and the navigation system, then enter the customer's audio presets. Reset the clock.
- Check the cruise control, radio remote, navigation system, voice control, HFL (HandFreeLink) system, and turn signal canceling for proper operation.
