Home >> Acura >> 2004 >> TL Standard >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering System >> Steering Wheel Disassembly/Reassembly

Steering Wheel Disassembly/Reassembly

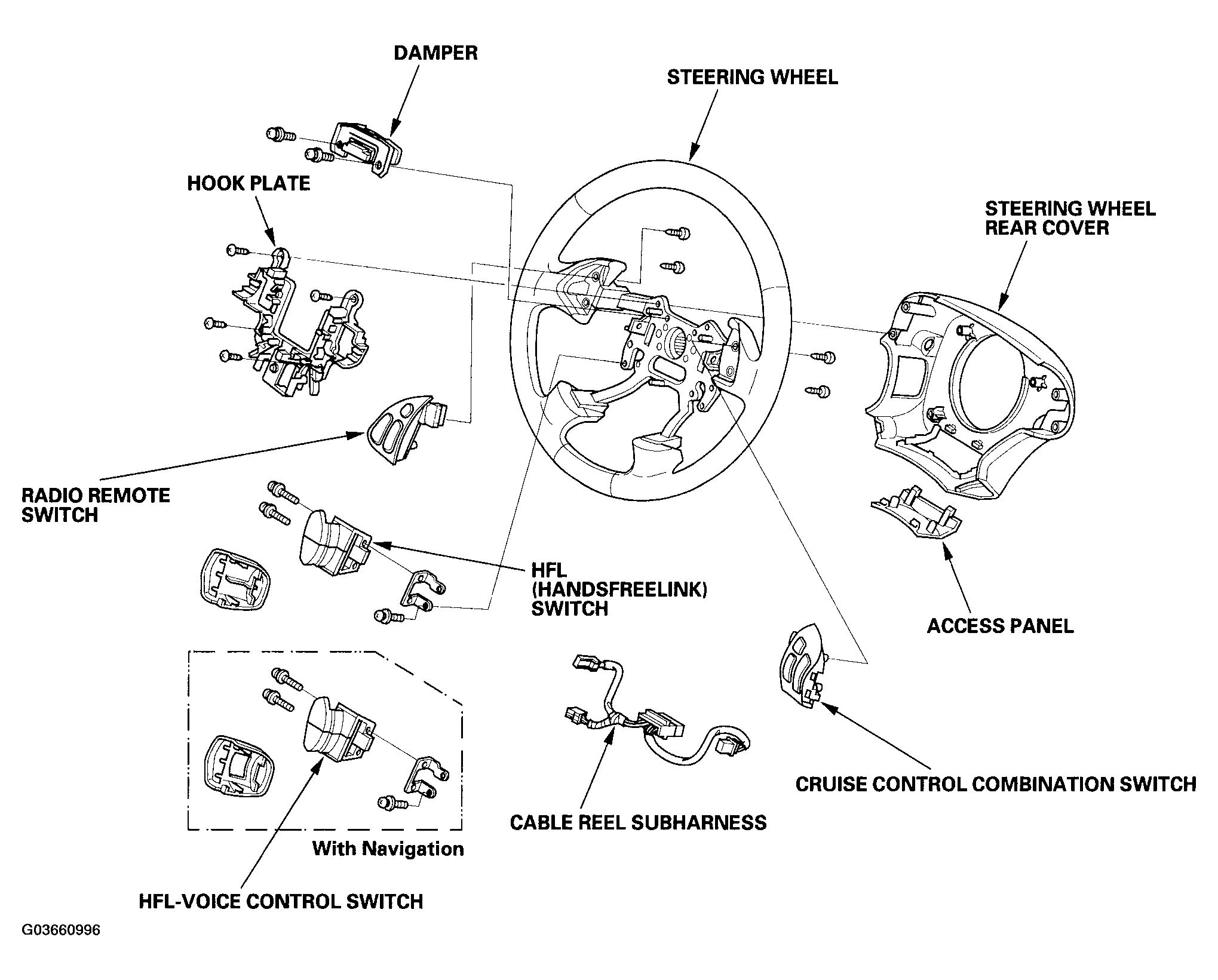

Fig 1: Exploded View Of Steering Wheel

G03660996

Courtesy of AMERICAN HONDA MOTOR CO., INC.
