Engine Compression Inspection

NOTE: After this inspection, you must reset the engine control module (ECM)/powertrain control module (PCM), otherwise the ECM/PCM will continue to stop the fuel injectors from functioning. Select ECM/PCM reset using the Honda Diagnostic System (HDS) (see HDS CLEAR COMMAND ).

Warm up the engine to normal operating temperature (cooling fan comes on).
Turn the ignition switch OFF.
Connect the HDS to the data link connector (DLC) (see GENERAL TROUBLESHOOTING INFORMATION ).
On the HDS, select PGM-FI, INSPECTION, then ALL INJECTORS OFF.
Remove the six ignition coils (see IGNITION COIL REMOVAL/INSTALLATION ).
Remove the six spark plugs.
Attach the compression gauge to the spark plug hole.

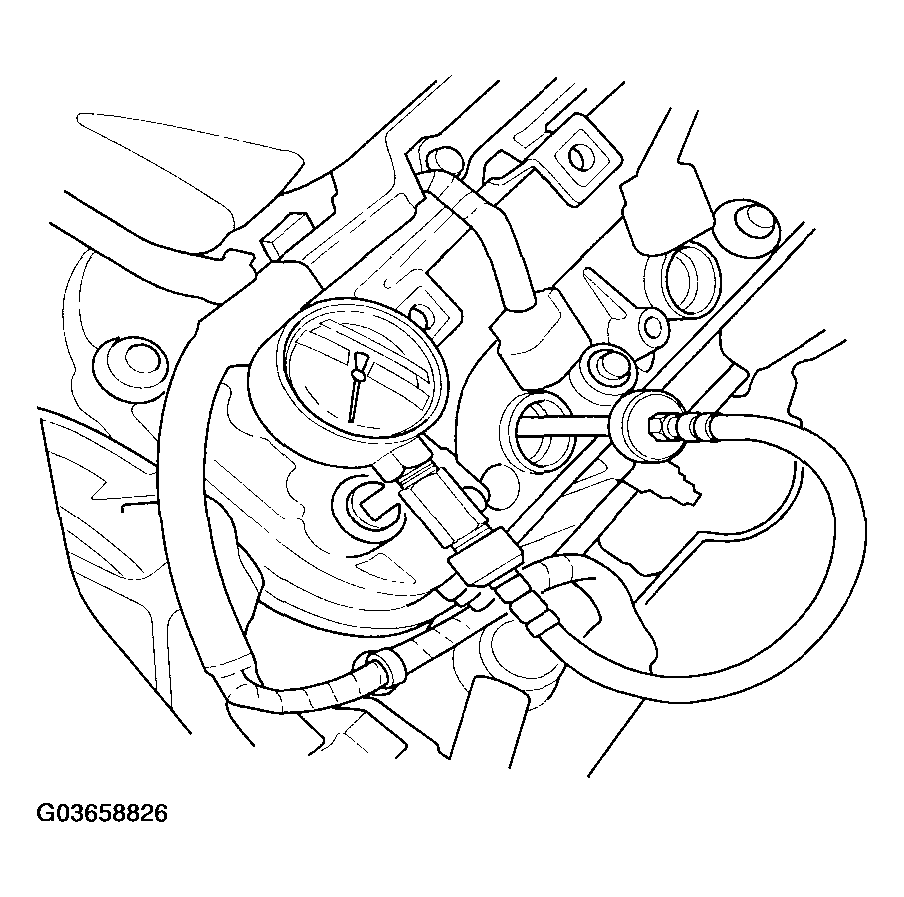

Fig 1: Attaching Compression Gauge To Spark Plug Hole
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Open the throttle fully, then crank the engine with the starter motor, and measure the compression.
Compression Pressure:

Above 930 kPa (9.5 kgf/cm ² ,135 psi)
Measure the compression on the remaining cylinders.
Maximum Variation:

Within 200 kPa (2.0 kgf/cm ² ,28 psi)
If the compression is not within specifications, check the following items, then remeasure the compression.
- Damaged or worn valves and seats
- Damaged cylinder head gasket
- Damaged or worn piston rings
- Damaged or worn piston and cylinder bore
Select ECM/PCM reset (see HDS CLEAR COMMAND ) to cancel the ALL INJECTORS OFF function on the HDS.
