Starter Removal and Installation: Installation

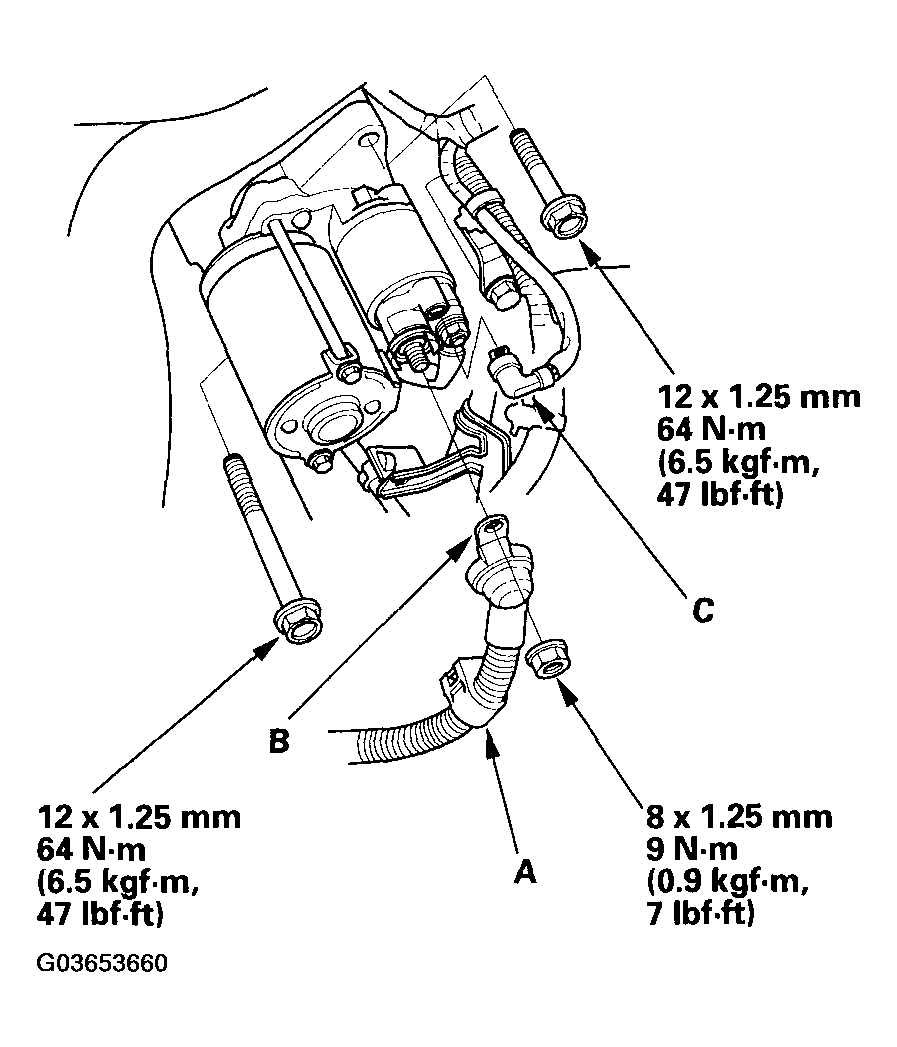

- Install the starter, then install the harness clamp (A). Connect the starter cable (B) to B terminal and the BLK/WHT wire (C) to the S terminal. Make sure the crimped side of the starter cable ring terminal is facing out.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the battery tray and the battery.
- Connect the positive cable to the battery first, then connect the negative cable.
- Start the engine to make sure the starter works properly.
- Reinstall the left side engine compartment cover (see step 77 on ENGINE INSTALLATION
).
- Either the anti-theft codes for the radio and the navigation system, then enter the audio presets.
- Set the clock.
