Circuit Diagram

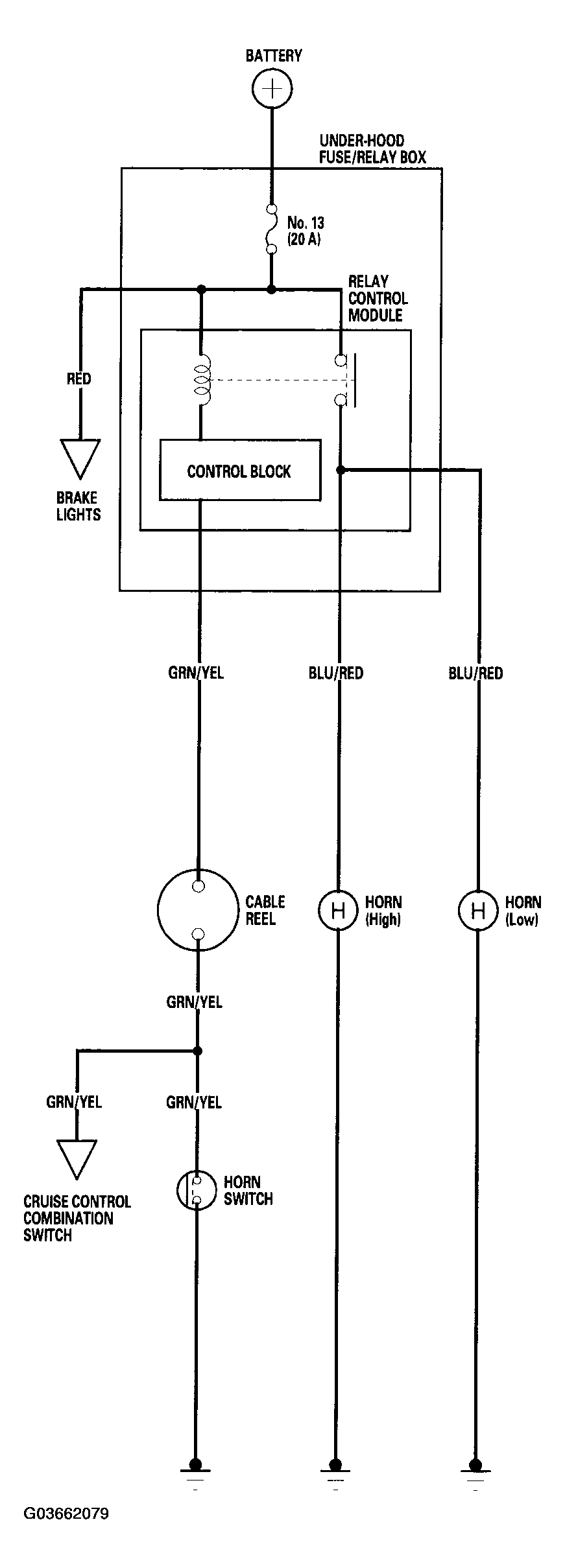

Fig 1: Horns - Circuit Diagram

G03662079

Courtesy of AMERICAN HONDA MOTOR CO., INC.
