Alternator Removal and Installation: Installation

  1. Install the alternator, then tighten the mounting bolt (A) and alternator mounting bracket mounting bolt (B).

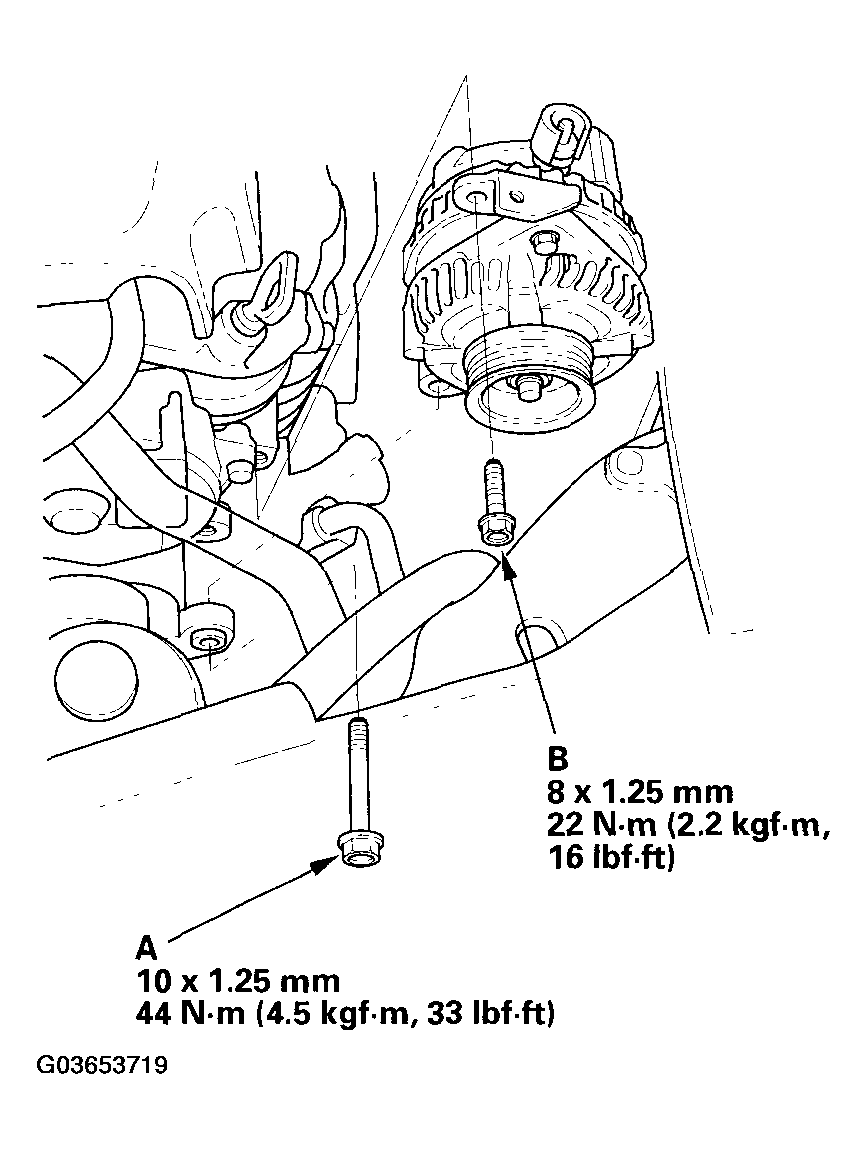

    Fig 1: Mounting Bolt (A) And Alternator Mounting Bracket Mounting Bolt (B) With Torque Specifications
    G03653719Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Connect the alternator connector (A) and the BLK wire (B) from the alternator.

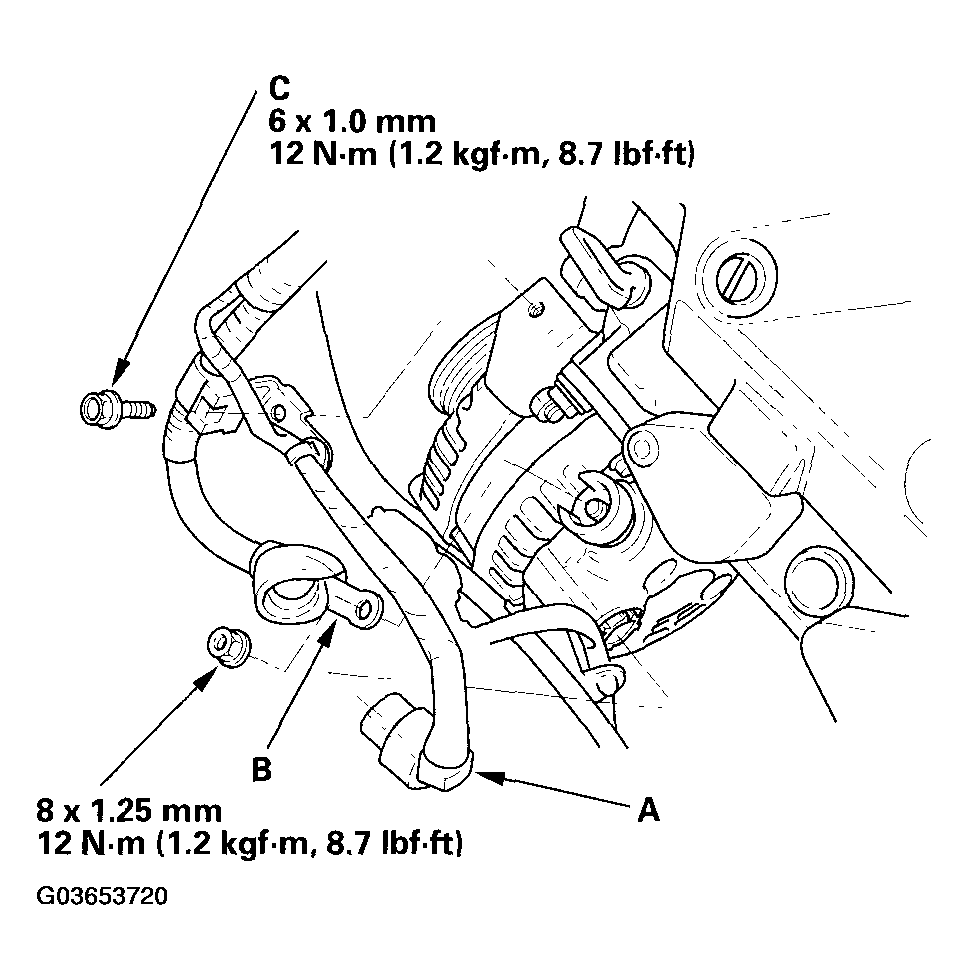

    Fig 2: Connecting Alternator Connector (A) And Black Wire (B)
    G03653720Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the bolt (C) securing the harness bracket.
  4. Install the drive belt (see DRIVE BELT INSPECTION ).
  5. Install the A/C condenser fen shroud assembly.

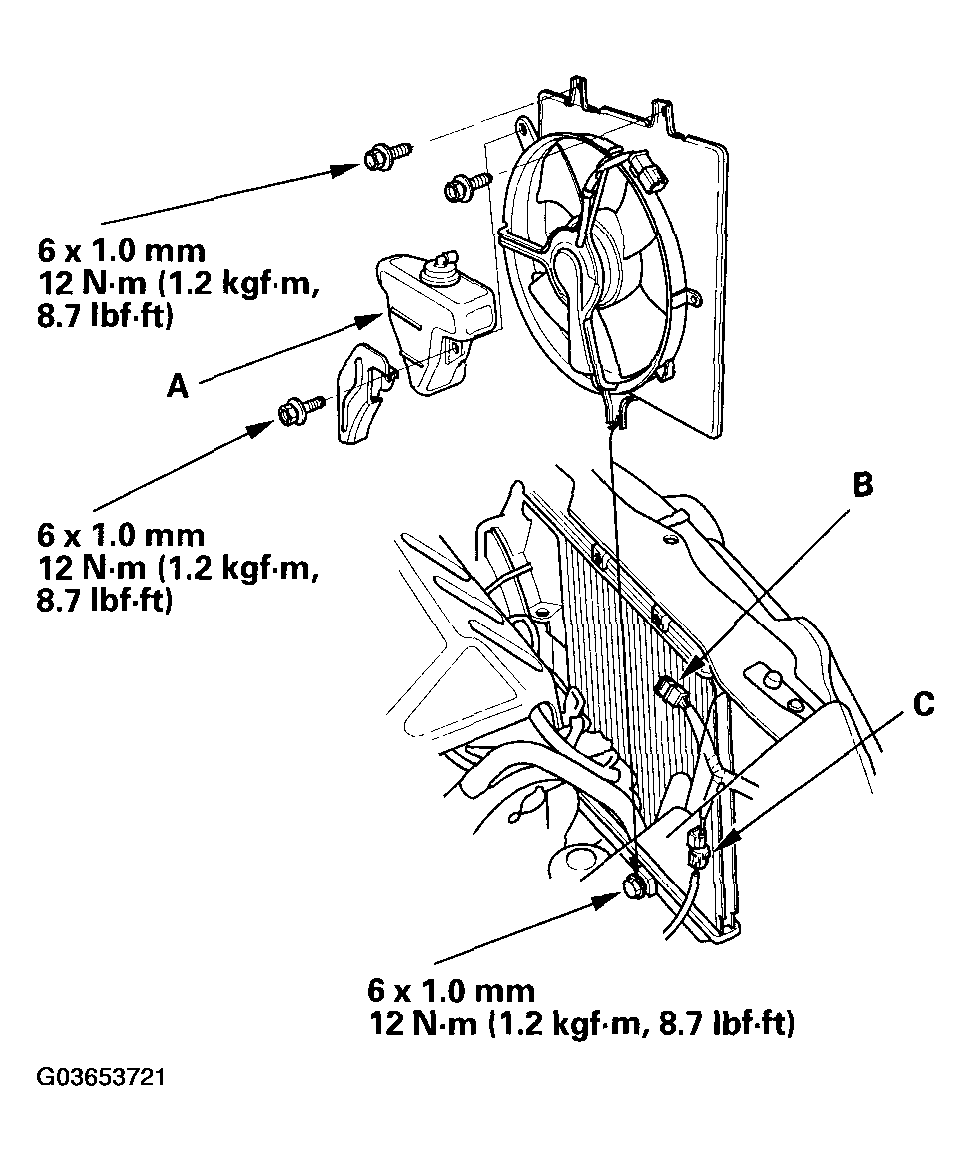

    Fig 3: Identifying Coolant Reservoir (A), Motor Connector (B) And Clutch Connector (C)
    G03653721Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the coolant reservoir (A), and connect the A/C condenser fan motor connector (B) and the A/C compressor clutch connector (C).
  7. Connect the positive cable to the battery first, and then connect the negative cable.
  8. Enter the anti-theft codes for the radio and the navigation system, then enter the audio presets.
  9. Set the clock.
