Forced Starting of Display

Remove the trunk trim (see TRIM REMOVAL/INSTALLATION - TRUNK AREA ).
Turn the ignition switch OFF, and connect the SCS service connector (A) to the navigation service check connector (B) located upper of the navigation unit.

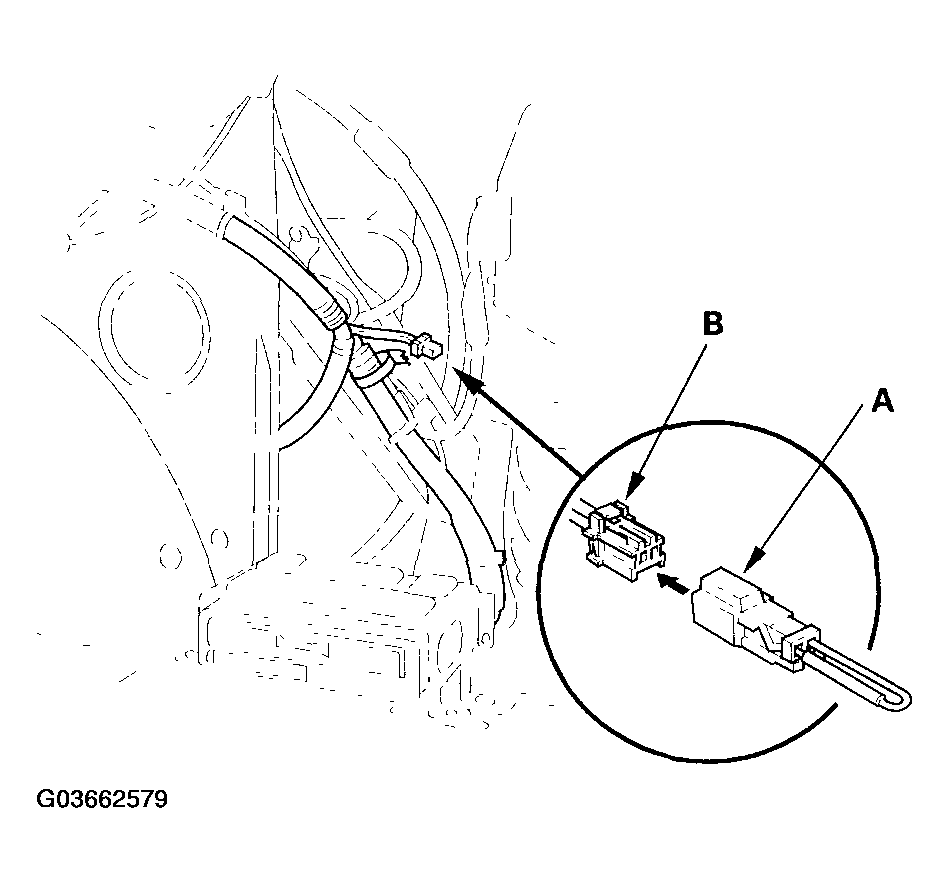

Fig 1: Connecting SCS Service Connector (A) To Navigation Service Check Connector (B)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch ON (II), and check that the diagnosis menu for the picture diagnosis starts up, and then changes to the system link menu.

NOTE: If the display fails to display the "Navi System Link" screen, refer to no picture is displayed (see NO PICTURE IS DISPLAYED ).
