Home
>>
Acura
>>
2004
>>
TL Standard
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
Relays And Control Unit Locations
>>
Engine Compartment
Engine Compartment

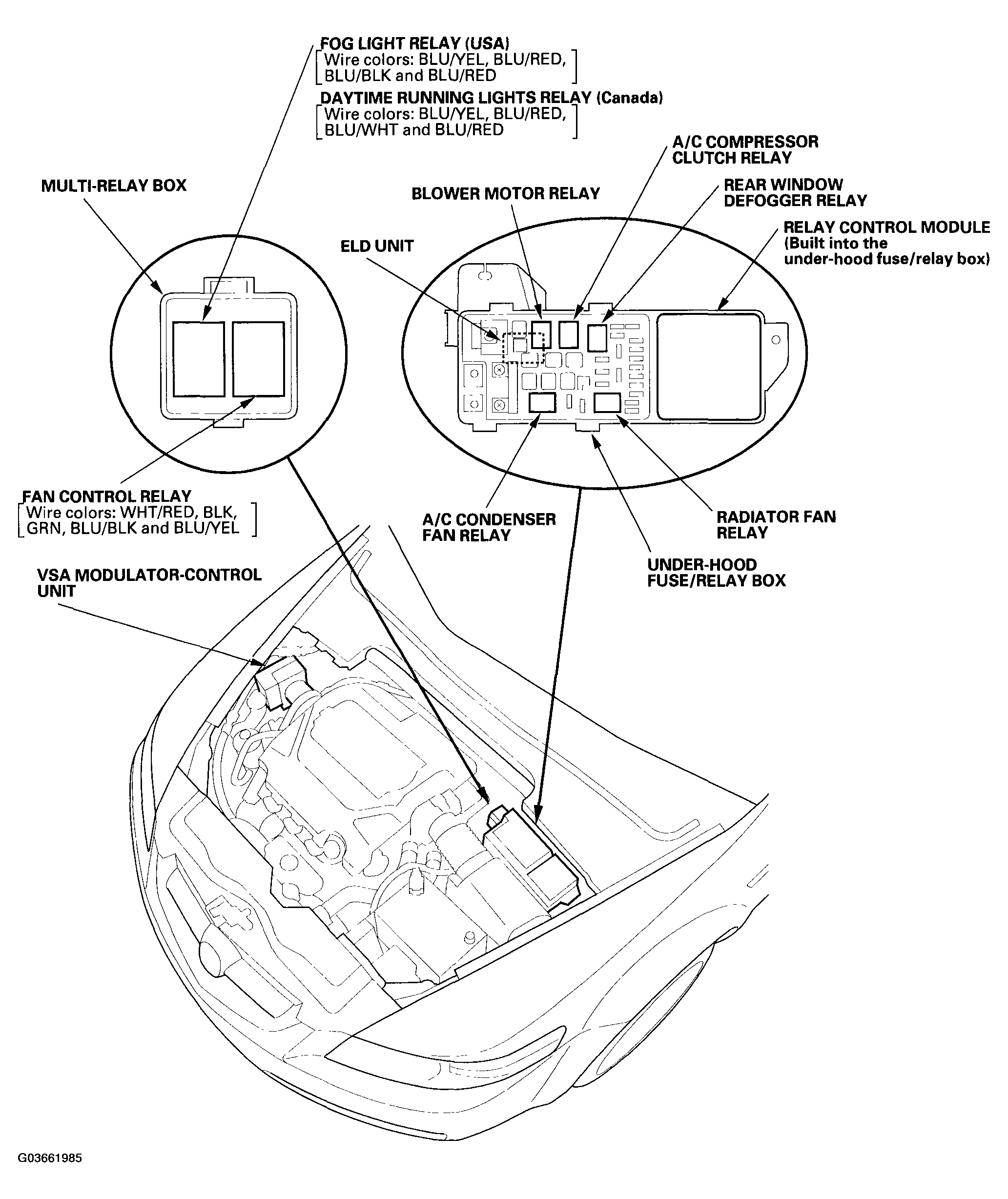

Fig 1: Exploded View Of Engine Compartment
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
