Wheel Sensor Replacement: Notes

NOTE: Install the sensor carefully to avoid twisting the wires.

Front

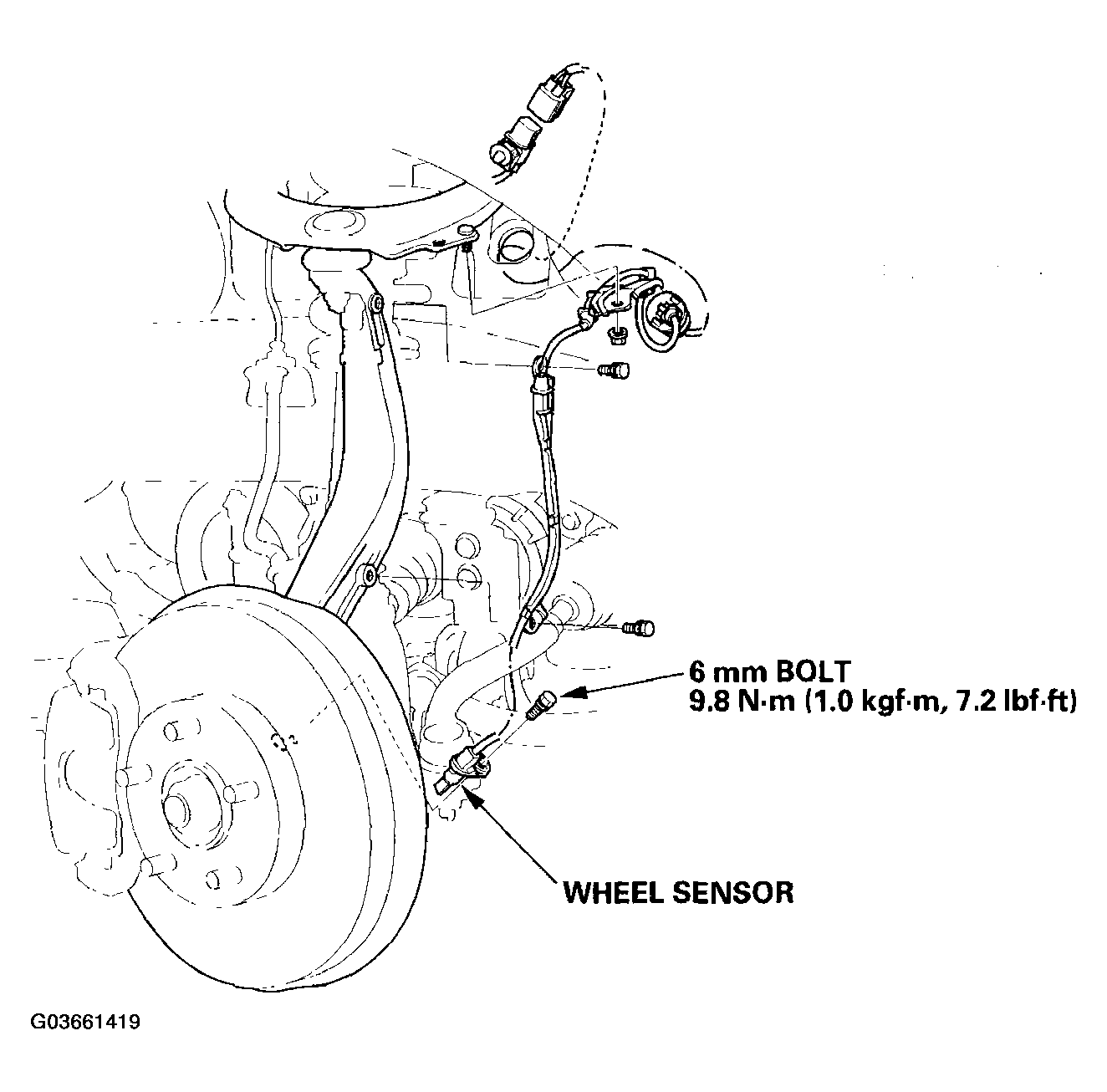

Fig 1: Identifying Wheel Sensor - Front
G03661419Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear

Fig 2: Identifying Wheel Sensor - Rear
G03661420Courtesy of AMERICAN HONDA MOTOR CO., INC.
