Audio Unit Removal/Installation

  1. Make sure you have the anti-theft codes for the radio and navigation system, then write down the audio presets.
  2. Remove the audio-HVAC display module assembly (see AUDIO-HVAC DISPLAY MODULE ASSEMBLY REMOVAL/INSTALLATION ).
  3. Remove the screws and bolts, then separate the audio unit (A) and display panel control unit (B).
    NOTE: To avoid damage, remove the screws (C) first, then remove the bolts (D).

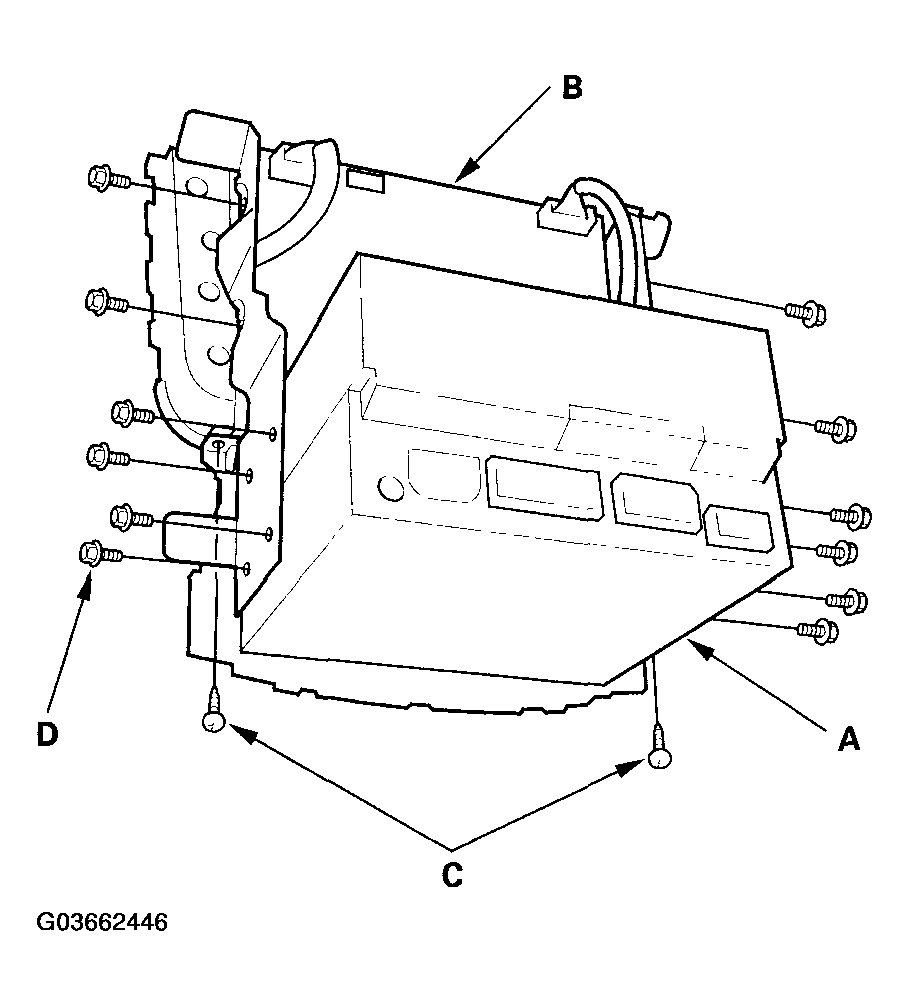

    Fig 1: Removing Screws & Bolts
    G03662446Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the audio unit to the display panel control unit in the reverse order of removal.
  5. Enter the anti-theft codes for the radio and navigation system, then enter the audio presets.
