Steering Wheel Installation

Before installing the steering wheel, make sure the front wheels are aligned straight ahead, then center the cable reel (A). Do this by first rotating the cable reel clockwise until it stops. Then rotate it counterclockwise about two and a half turns. The arrow mark (B) on the cable reel label should point straight up.

Fig 1: Identifying Center Cable Reel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Position the two tabs (A) of the turn signal canceling sleeve (B) as shown, and install the steering wheel on to the steering column shaft, making sure the steering wheel hub (C) engages the pins (D) of the cable reel and tabs of the turn signal canceling sleeve. Do not tap on the steering wheel or steering column shaft when installing the steering wheel.

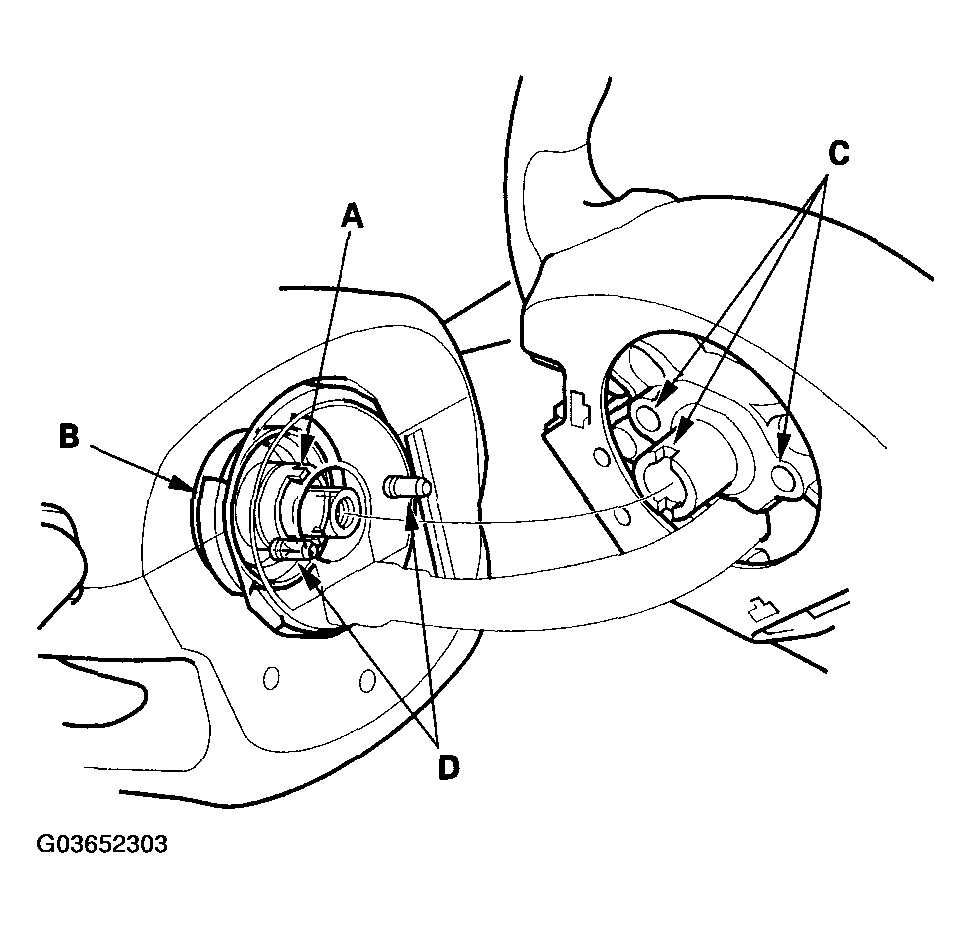

Fig 2: Positioning Tabs Of Turn Signal Canceling Sleeve And Installing Steering Wheel Onto Steering Column Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the steering wheel bolt (A) and tighten it.

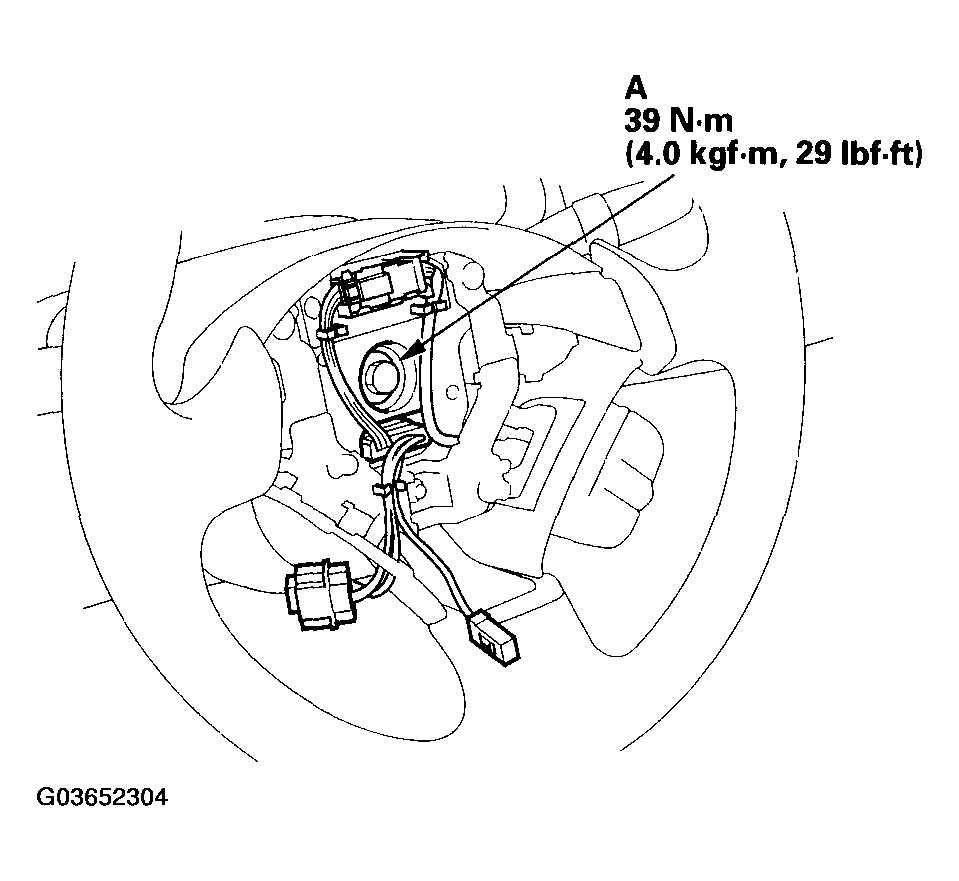

Fig 3: Installing Steering Wheel Bolt And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the cruise control main switch connector.
Install the driver's airbag, and confirm that the system is operating properly (see INSTALLATION ).
Check the horn and turn signal canceling for proper operation.
Reconnect the battery and do the following:
- Power window control unit resetting procedure (see RESETTING THE POWER WINDOW CONTROL UNIT ).
- ECM/PCM idle learn procedure (see ECM/PCM IDLE LEARN PROCEDURE ).
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
- Set the clock.
