Rocker Arm Oil Control Solenoid (VTEC Solenoid Valve) Assembly Removal/Installation

  1. Disconnect the rocker arm oil control solenoid (VTEC solenoid valve) connector, the rocker arm oil pressure switch (VTEC oil pressure switch) connector and the bolts (A).

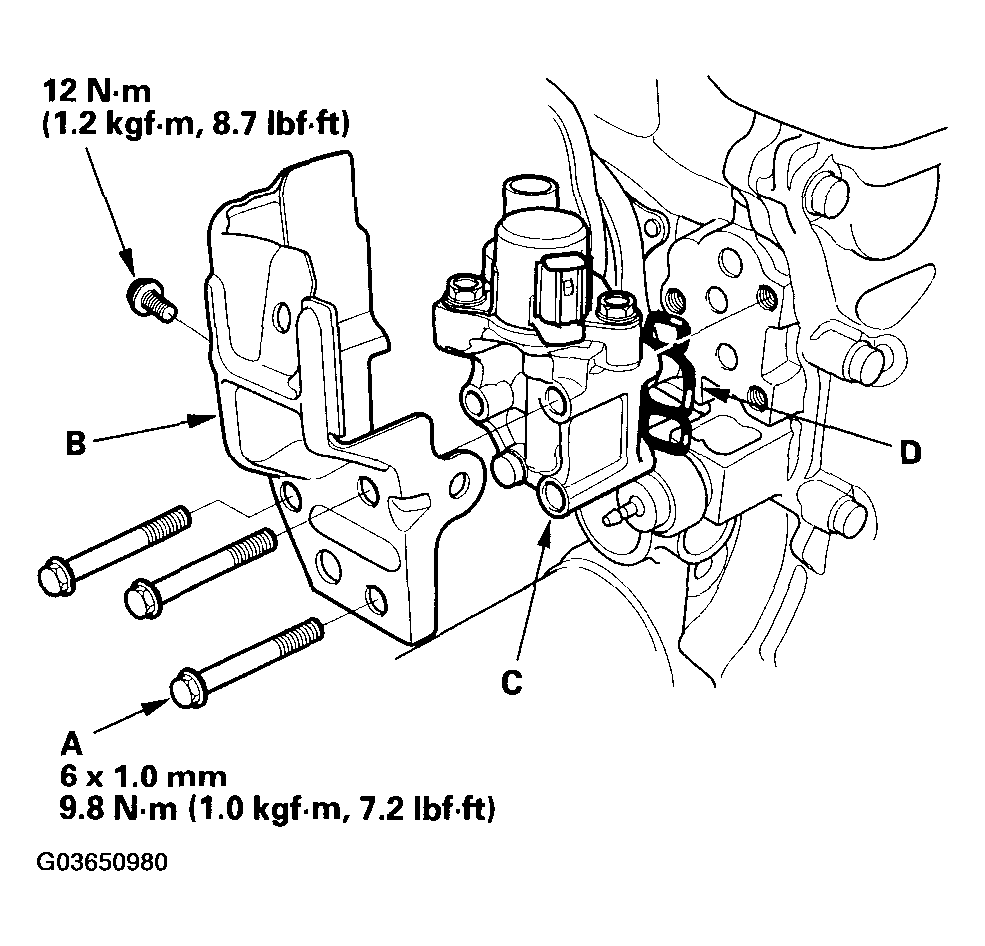

    Fig 1: Removing Cover And Rocker Arm Oil Control Solenoid (VTEC Solenoid Valve) Assembly And Torque Specifications
    G03650980Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the cover (B), and the rocker arm oil control solenoid (VTEC solenoid valve) assembly (C).
  3. Install the valve in the reverse order of removal with a new solenoid valve filter (D).
