Throttle Cable Removal/Installation

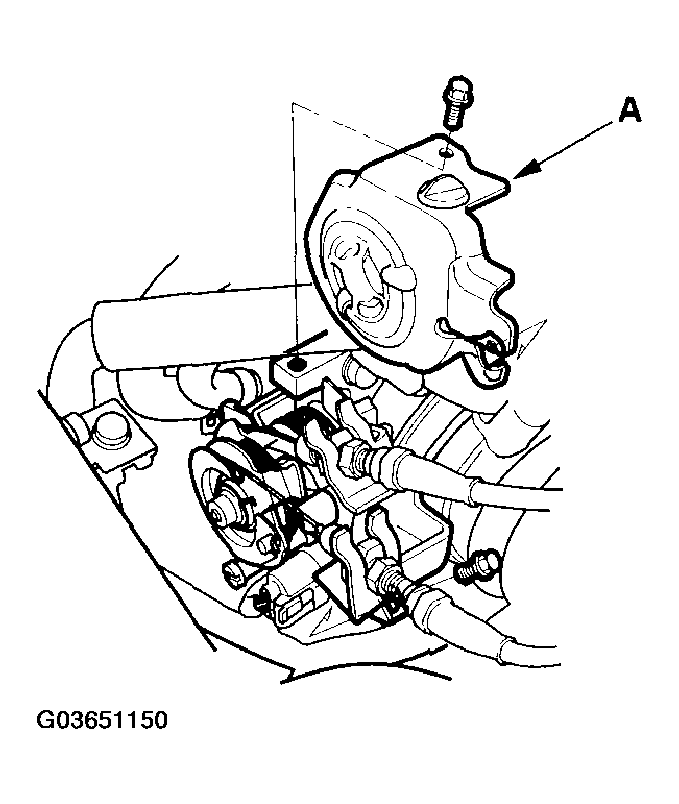

Remove the throttle linkage cover (A) (K20A3 engine only).

Fig 1: Removing Throttle Linkage Cover (K20A3 Engine Only)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fully open the throttle valve, then remove the throttle cable (A) from the throttle link (B).

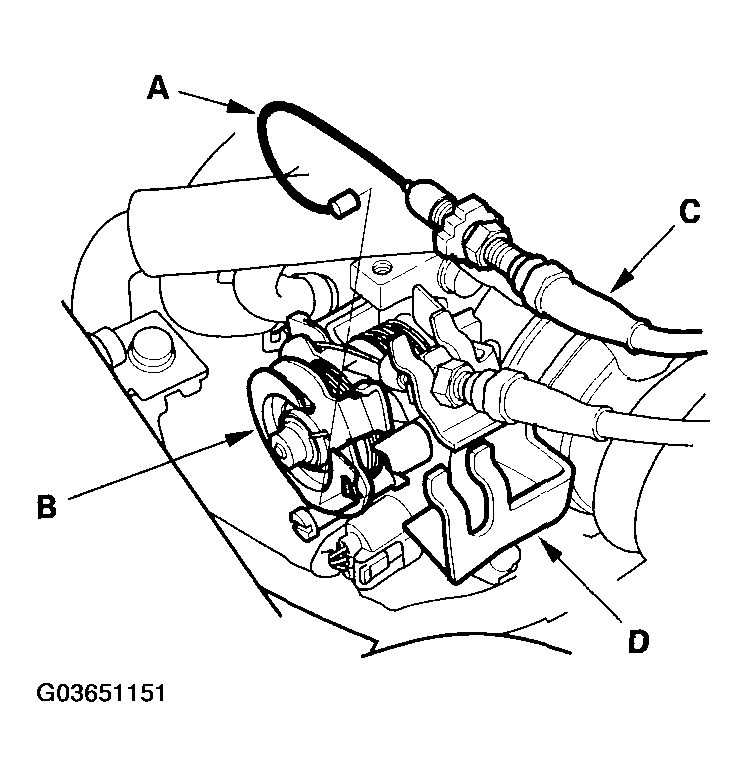

K20A2/K20Z1 engines

Fig 2: Removing Throttle Cable From Throttle Link (K20A2/K20Z1 Engines)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

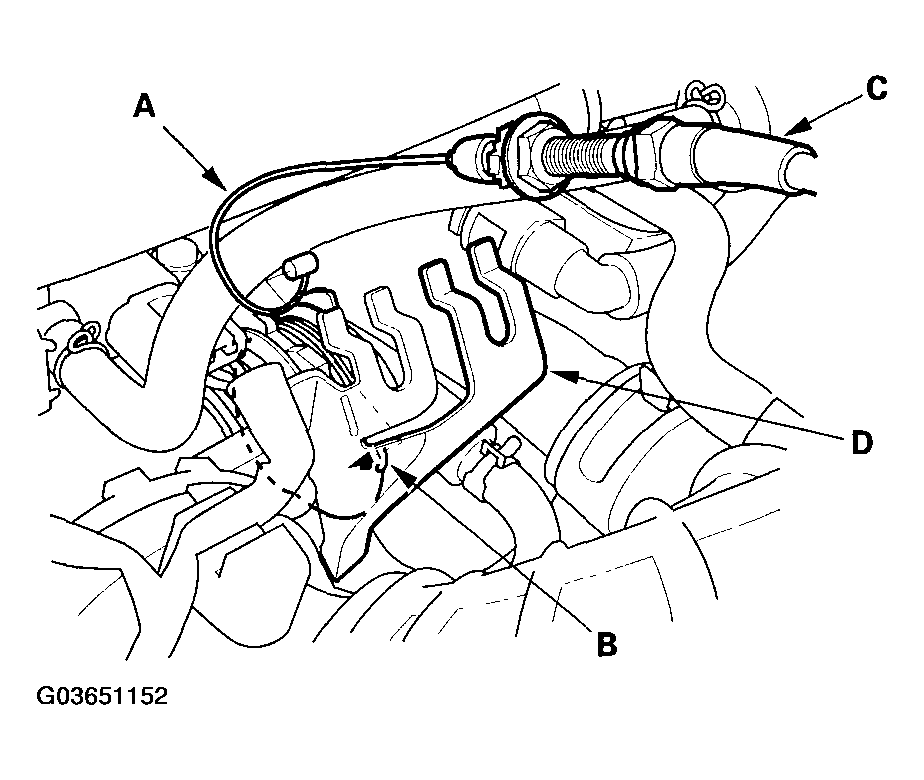

K20A3 engine

Fig 3: Removing Throttle Cable From Throttle Link (K20A3 Engine)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the cable housing (C) from the cable bracket (D).

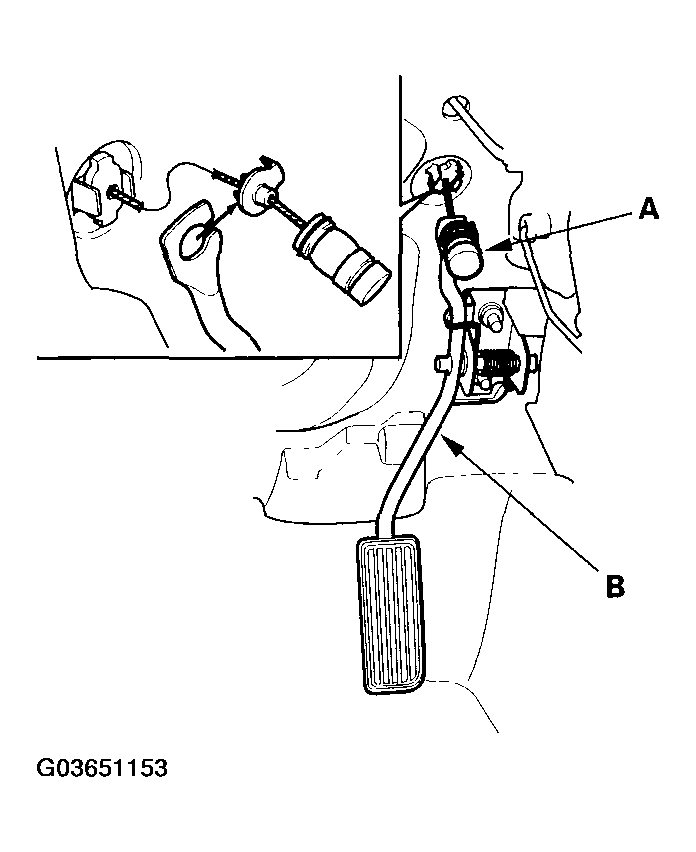

Remove the throttle cable (A) from the accelerator pedal (B).

Fig 4: Removing Throttle Cable From Accelerator Pedal
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal.
After installing, start the engine. Hold the engine speed at 3,000 RPM without load (in Park or neutral) until the radiator fan comes on, then let it idle.
Hold the cable, removing all slack from it.
Set the locknut on the cable bracket (A). Turn the adjusting nut (B) so that its free play is 0 mm.

Fig 5: Setting Locknut On Cable Bracket And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the cable from the throttle bracket (A). Reset the adjusting nut (B), and tighten the locknut (C).
With the cable properly adjusted, check the throttle valve to be sure it opens fully when you push the accelerator pedal to the floor. Also check the throttle valve to be sure it returns to the idle position whenever you release the accelerator pedal.
