2004
>>
RSX Base, Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Communication Devices
>>
Multiplex Control System
>>
Circuit Diagram
Circuit Diagram

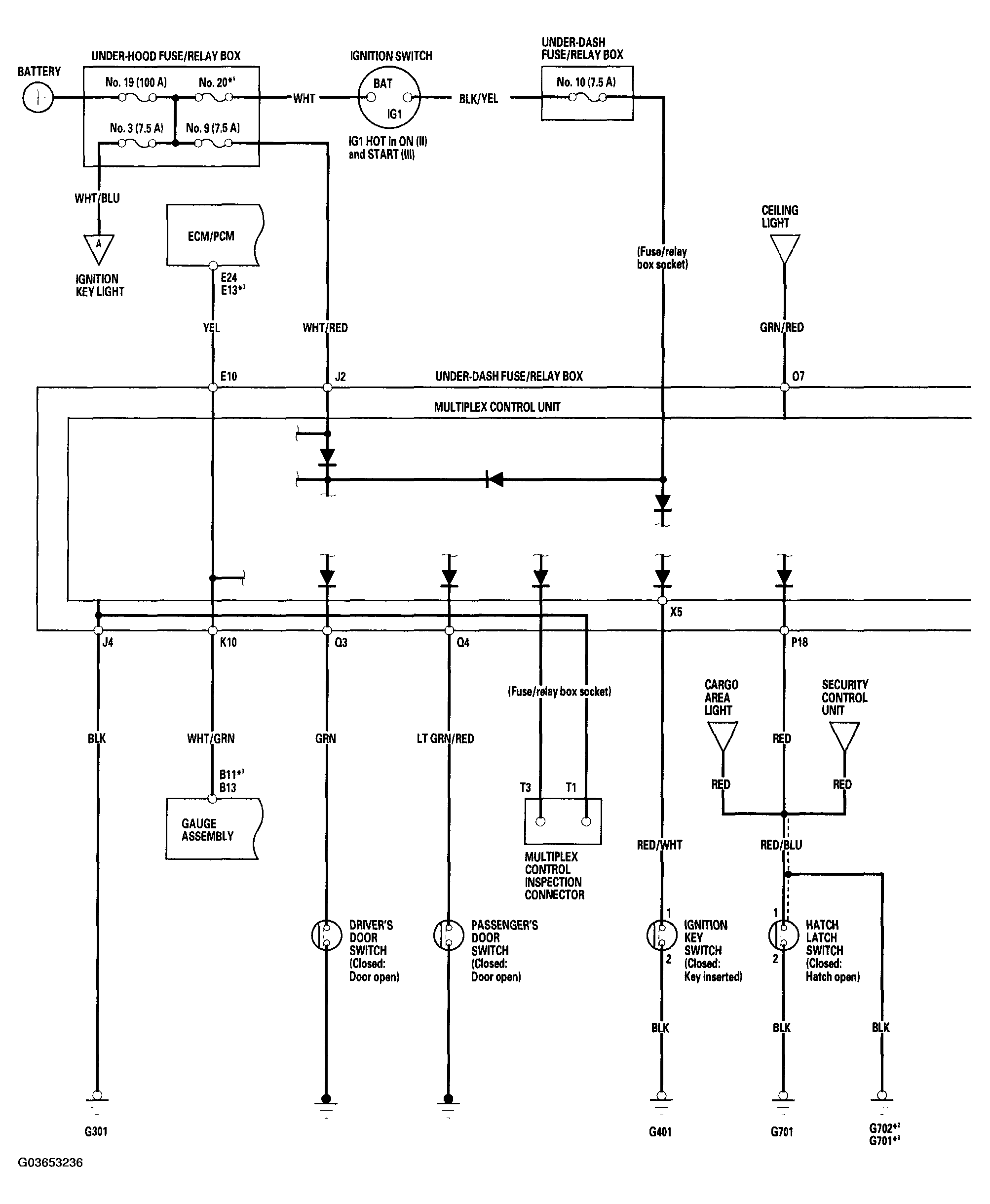

Fig 1: Multiplex Control System Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

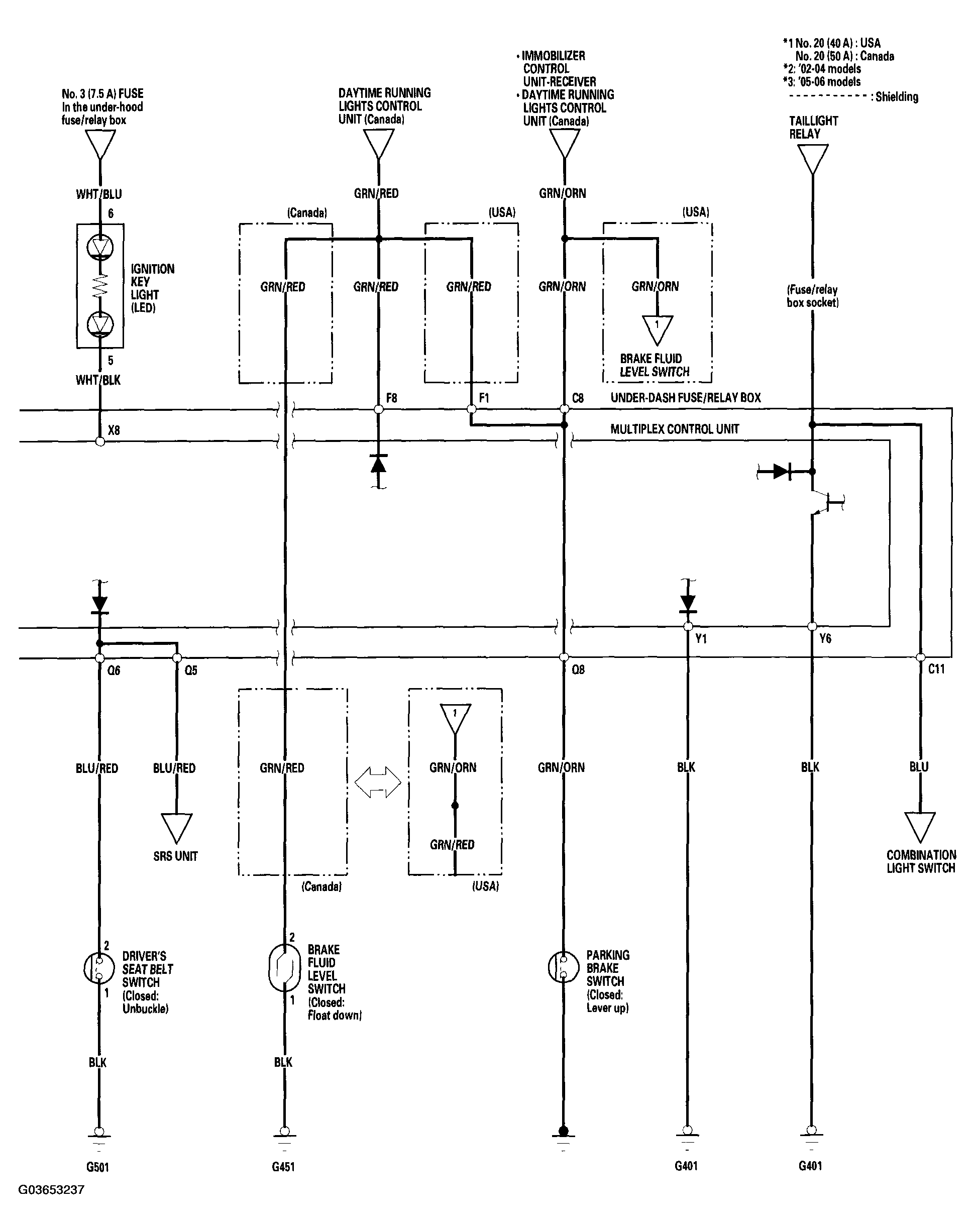

Fig 2: Multiplex Control System Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
