PCM Electrical Connections - 2002-2004 Models
PCM Electrical Connections - 2002-2004 Models

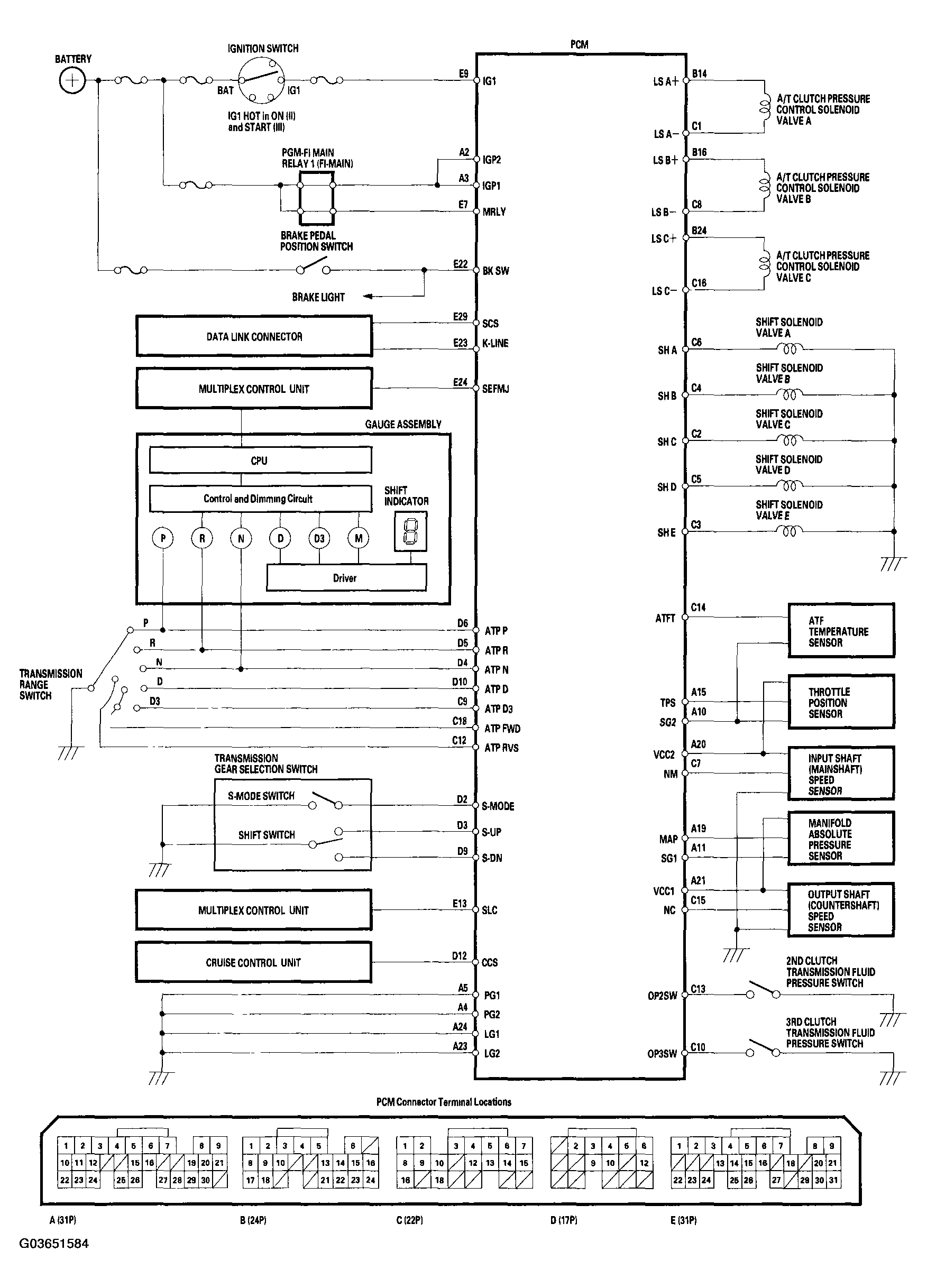

Fig 1: Identifying PCM Electrical Connections - Circuit Diagram (2002-2004 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
