Home >> Acura >> 2004 >> RSX Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat Heaters >> Component Location Index >> Canada

Component Location Index: Canada

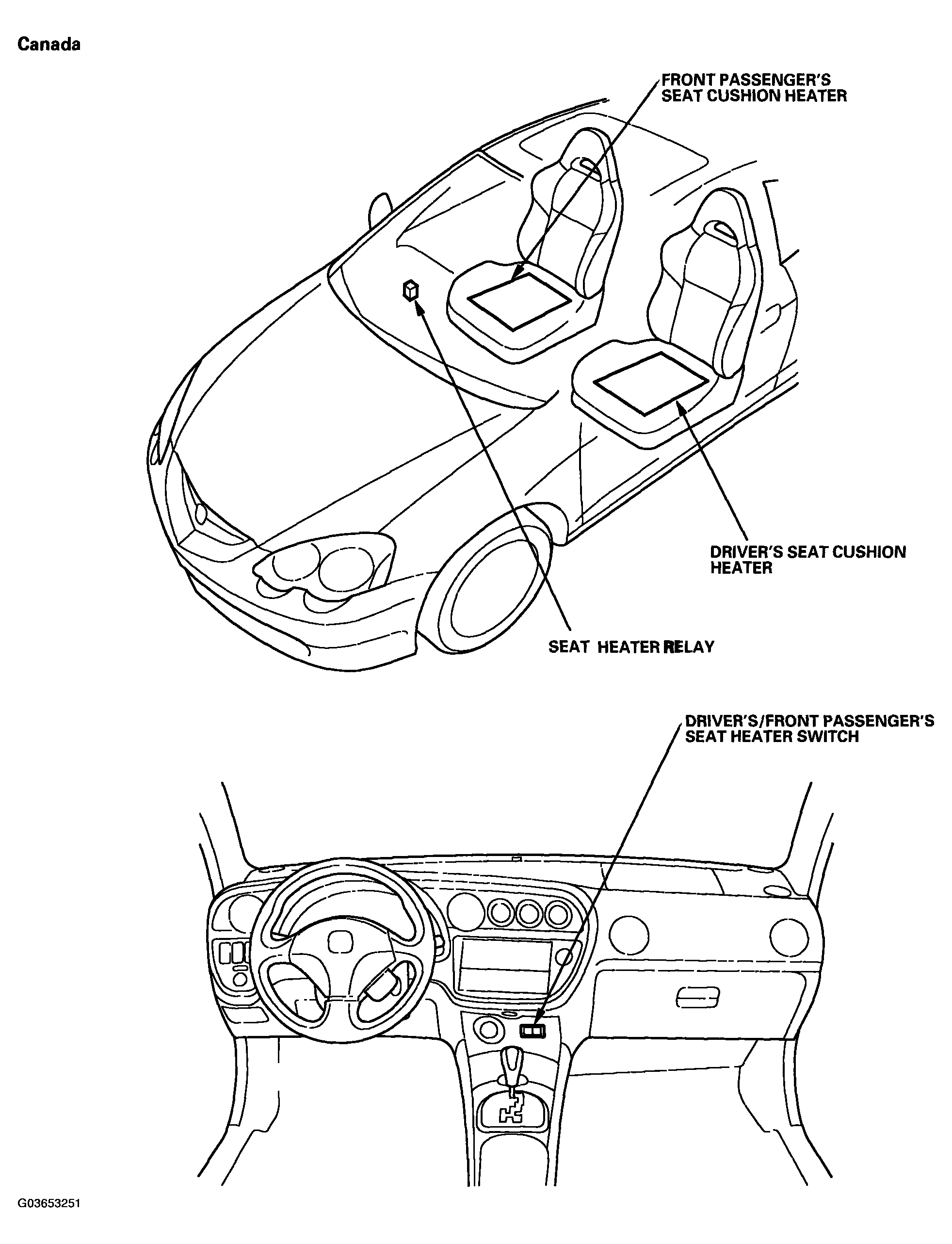

Fig 1: Identifying Seat Heaters Component

G03653251

Courtesy of AMERICAN HONDA MOTOR CO., INC.
