Connector Location & Identification

For connector identification and locations, see Fig 1 -Fig 14 .

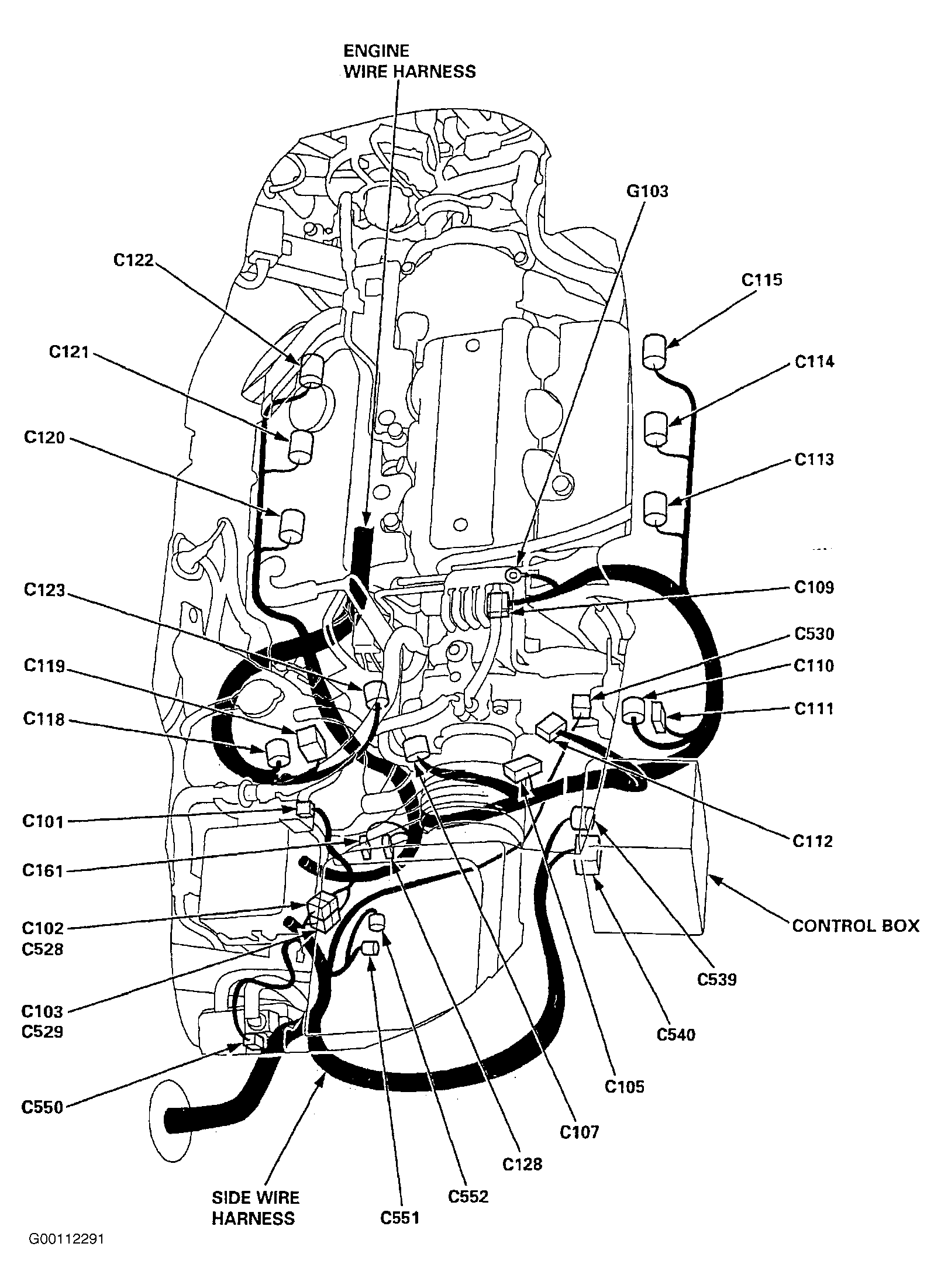

Fig 1: Identifying & Locating Connectors - Right Side Of Engine Compartment (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

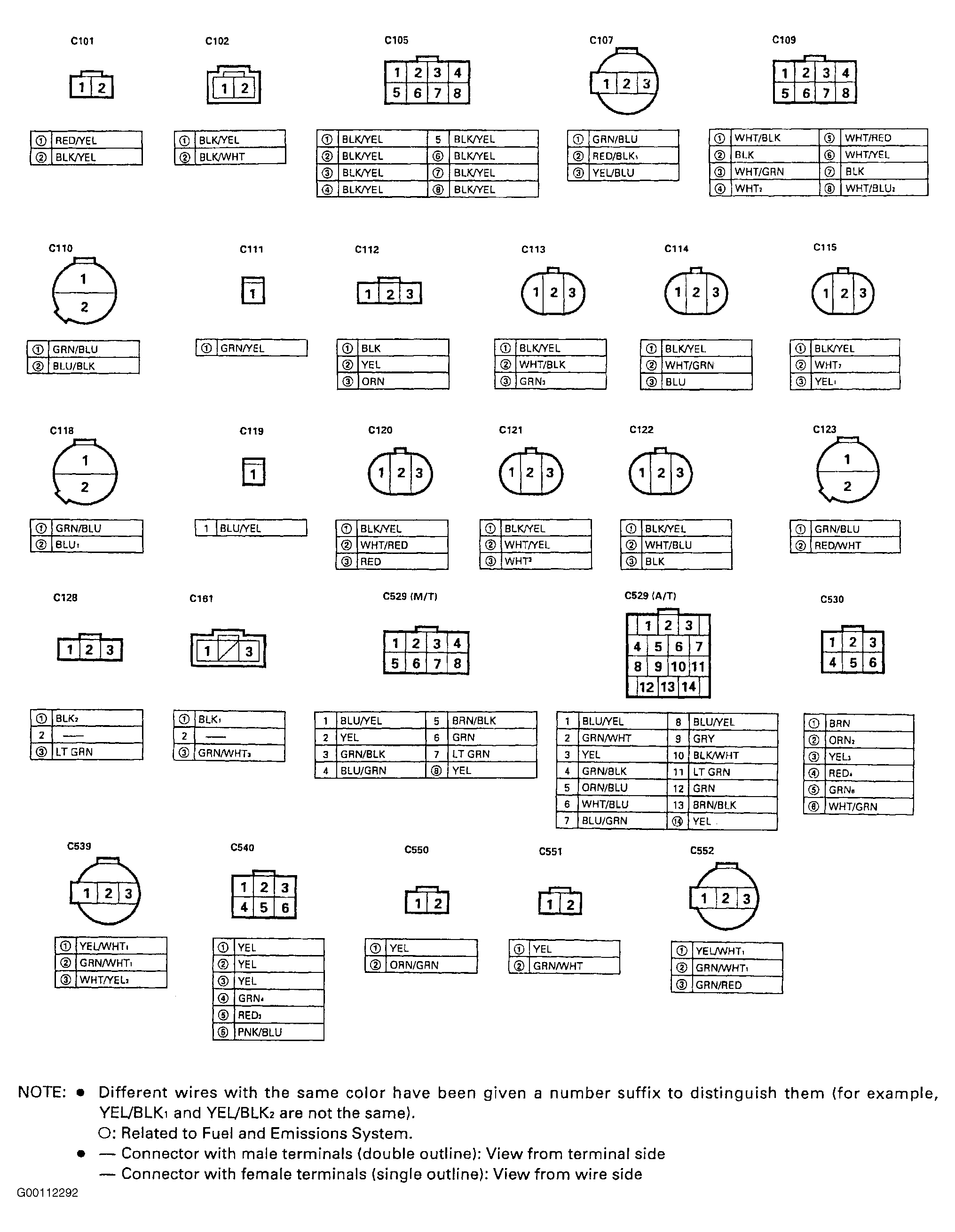

Fig 2: Identifying & Locating Connectors - Right Side Of Engine Compartment (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

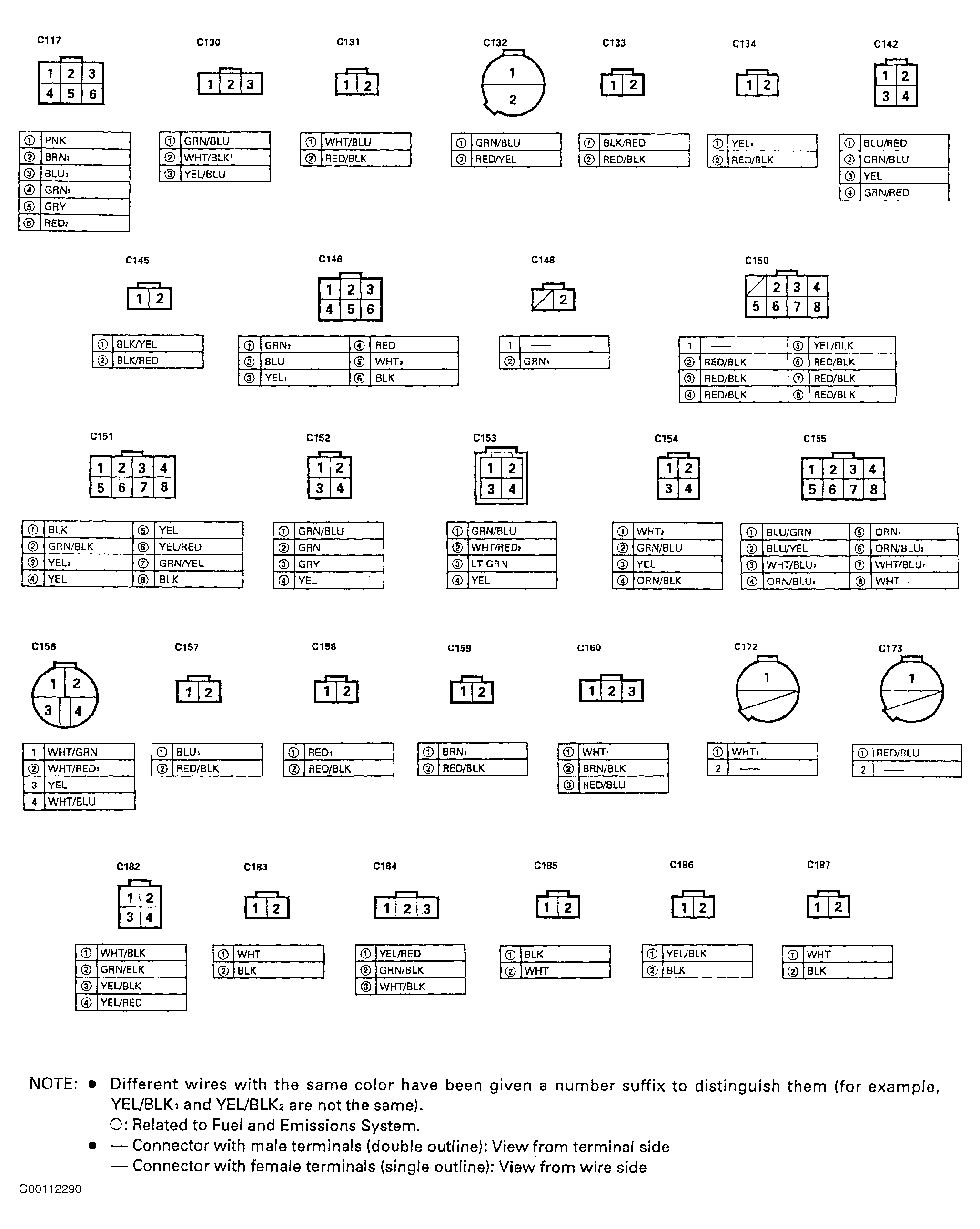

Fig 3: Identifying & Locating Connectors - Left Side Of Engine Compartment (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Identifying & Locating Connectors - Left Side Of Engine Compartment (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

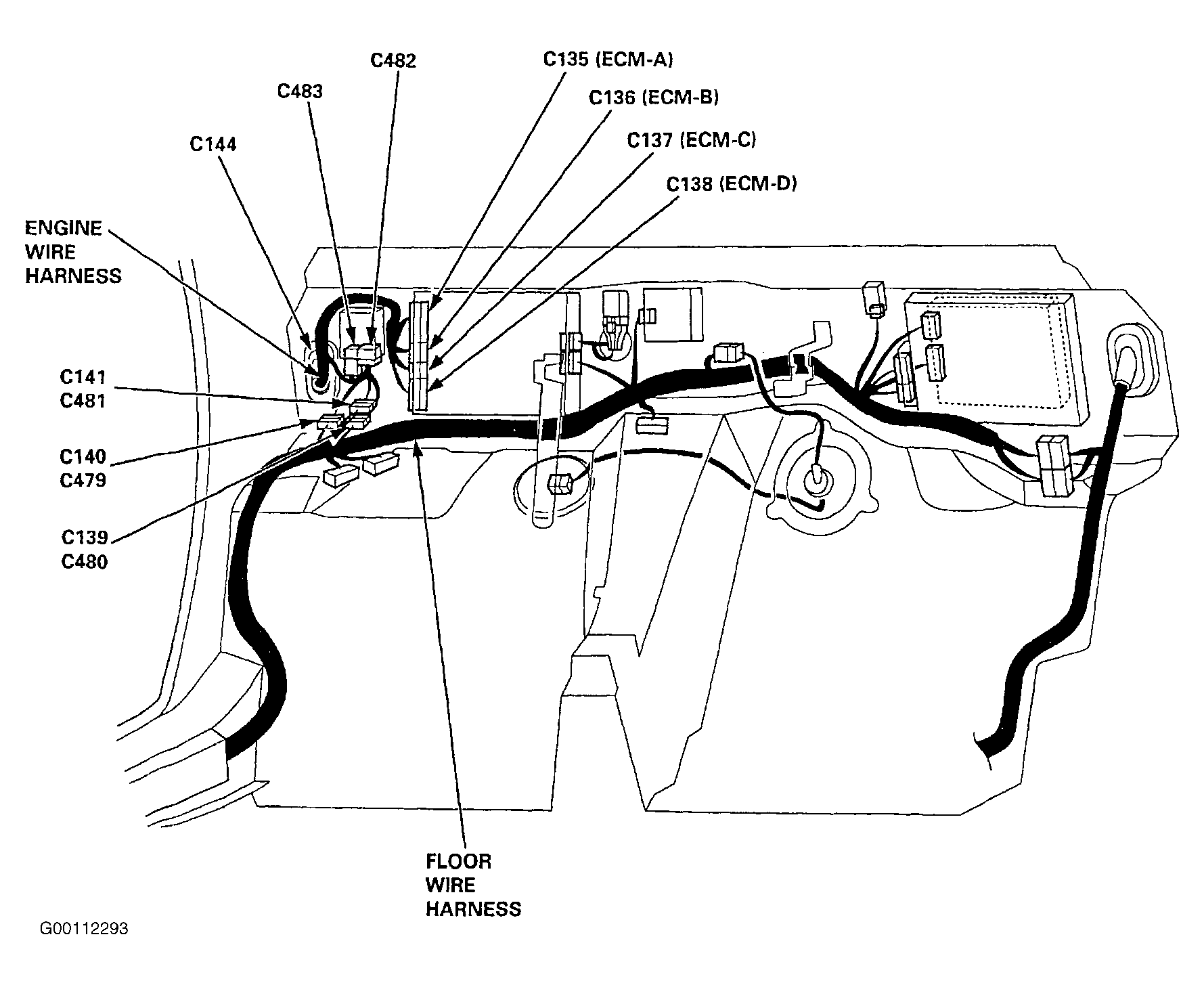

Fig 5: Identifying & Locating Connectors - Behind Seats Under Bulkhead Panels (1 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

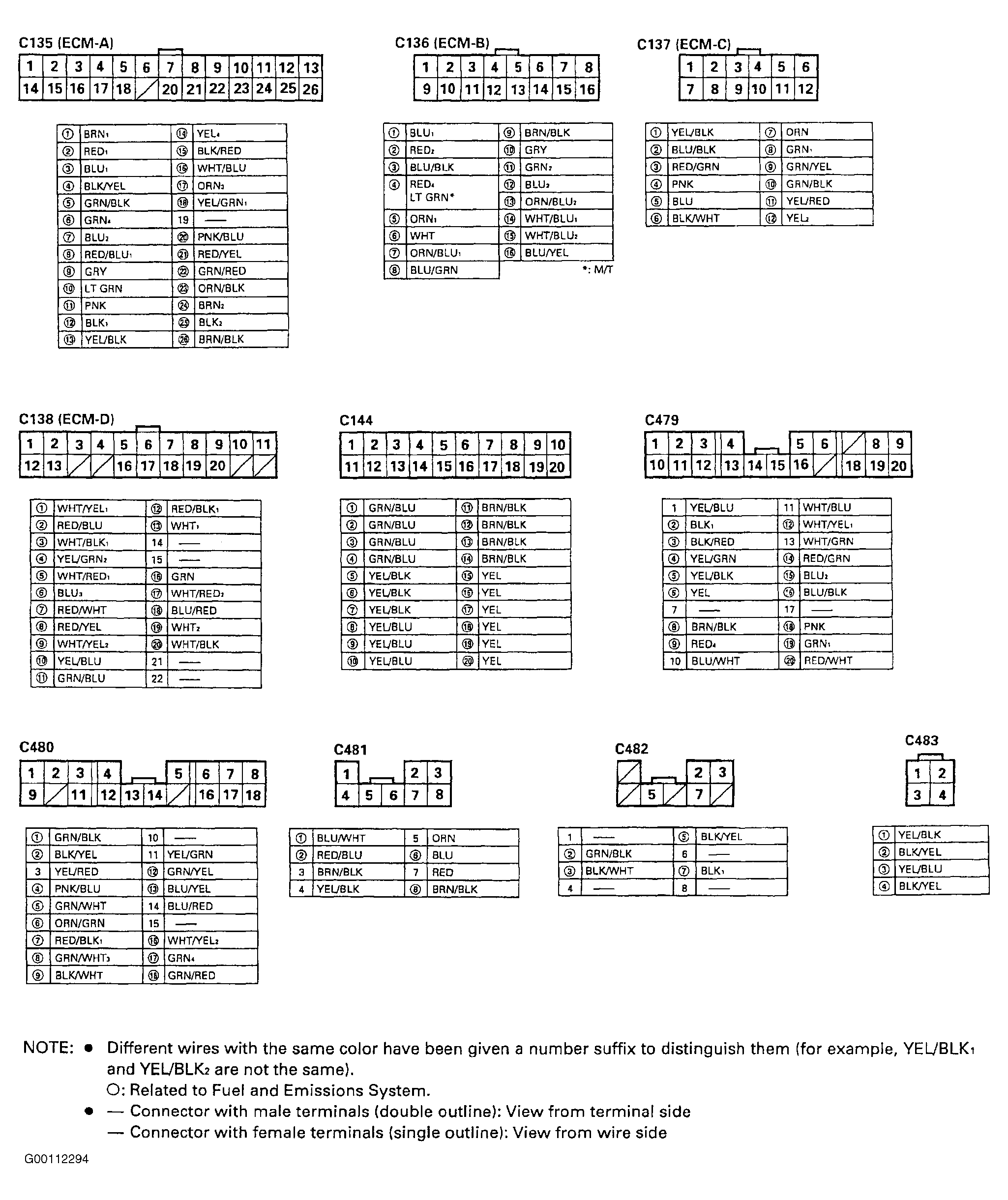

Fig 6: Identifying & Locating Connectors - Behind Seats Under Bulkhead Panels (2 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

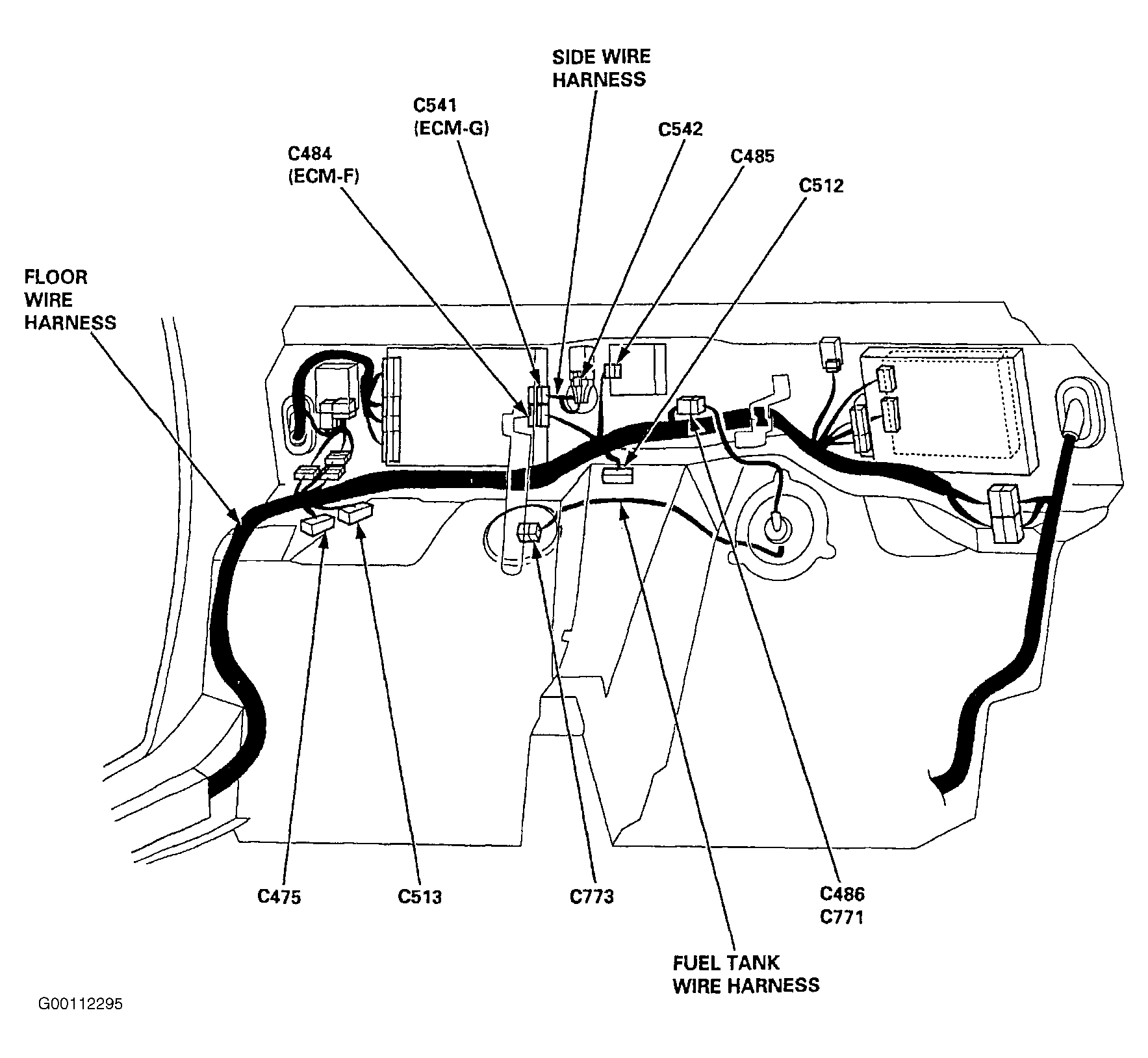

Fig 7: Identifying & Locating Connectors - Behind Seats Under Bulkhead Panels (3 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

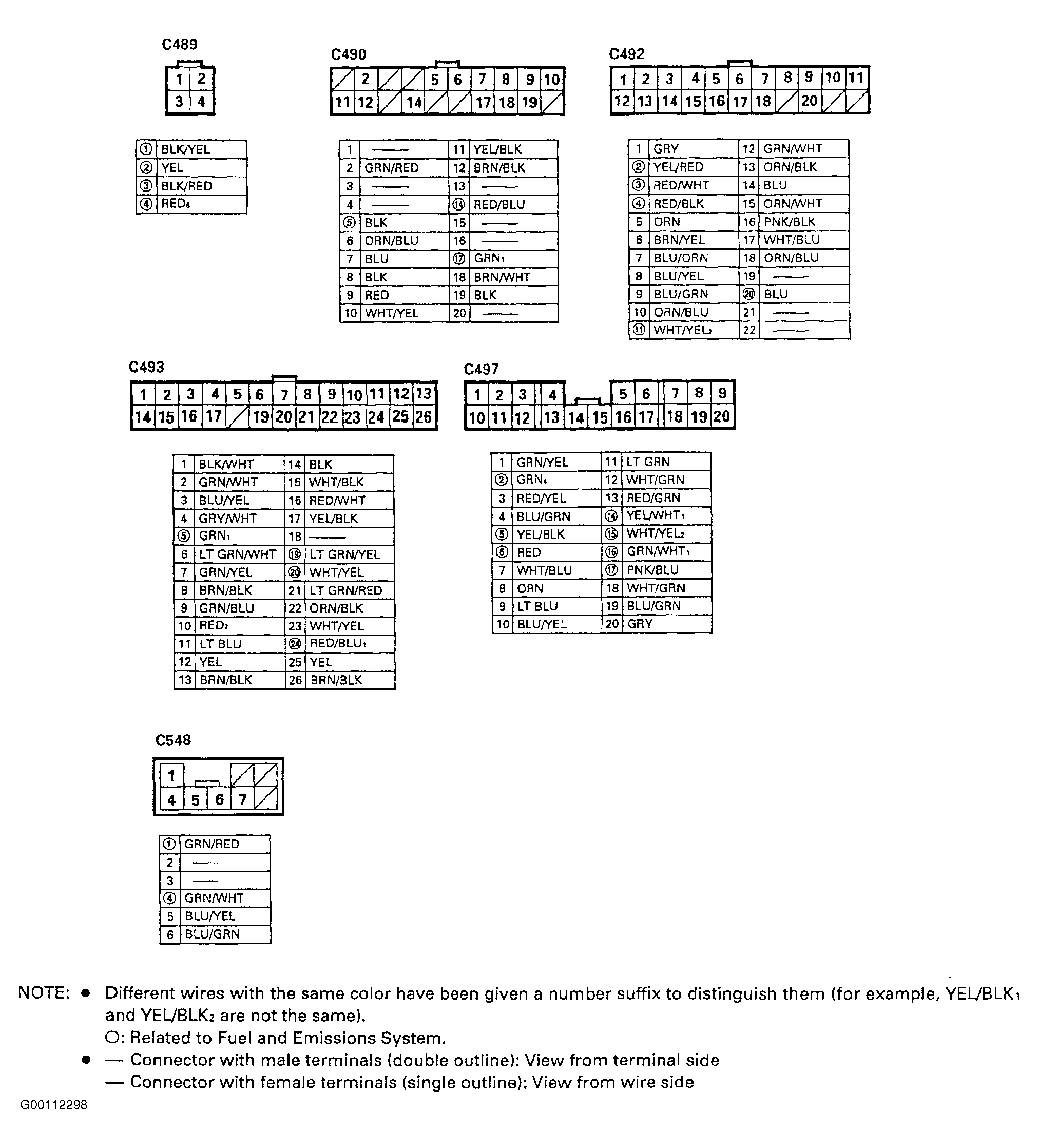

Fig 8: Identifying & Locating Connectors - Behind Seats Under Bulkhead Panels (4 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

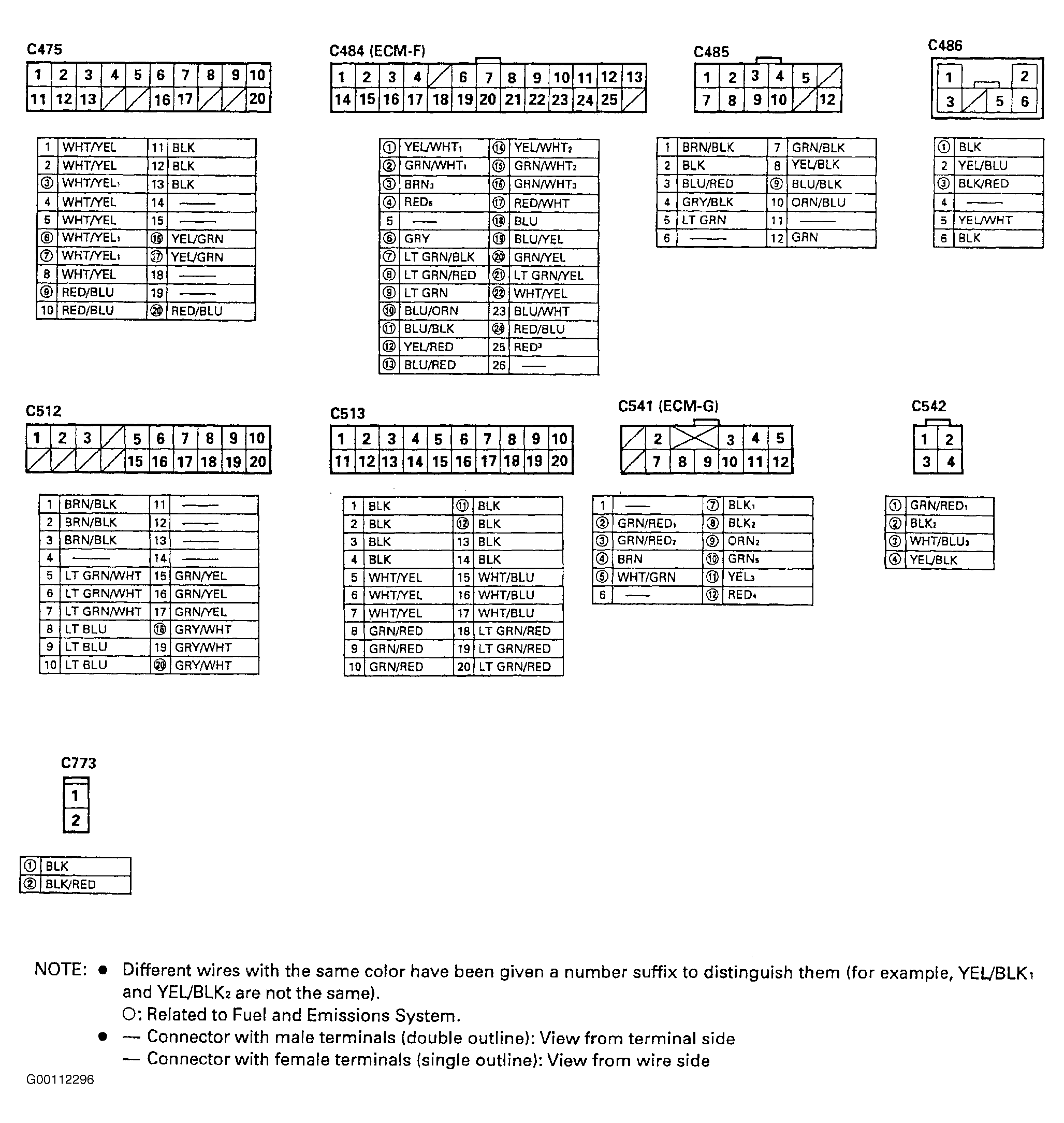

Fig 9: Identifying & Locating Connectors - Behind Seats Under Bulkhead Panels (5 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

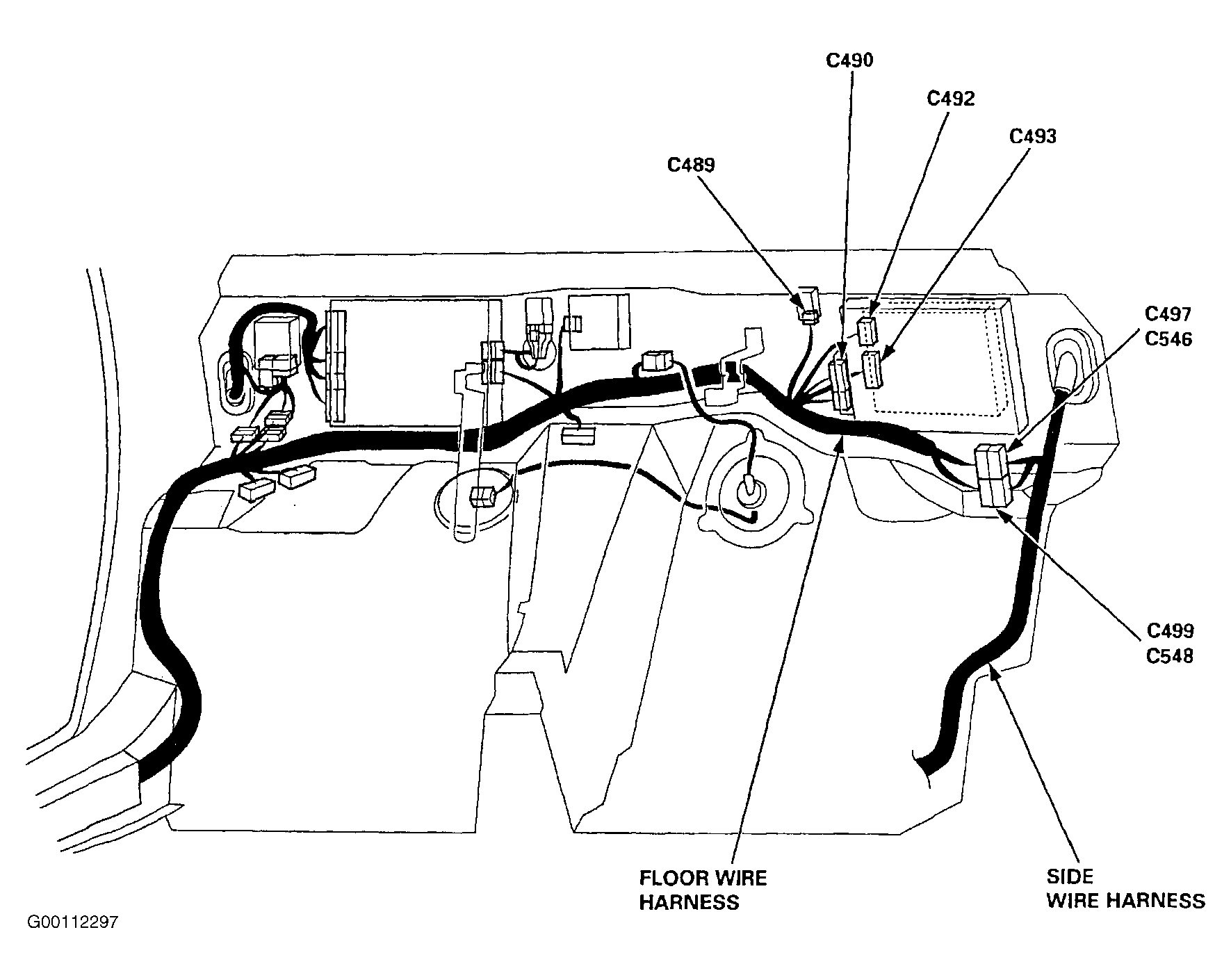

Fig 10: Identifying & Locating Connectors - Behind Seats Under Bulkhead Panels (6 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

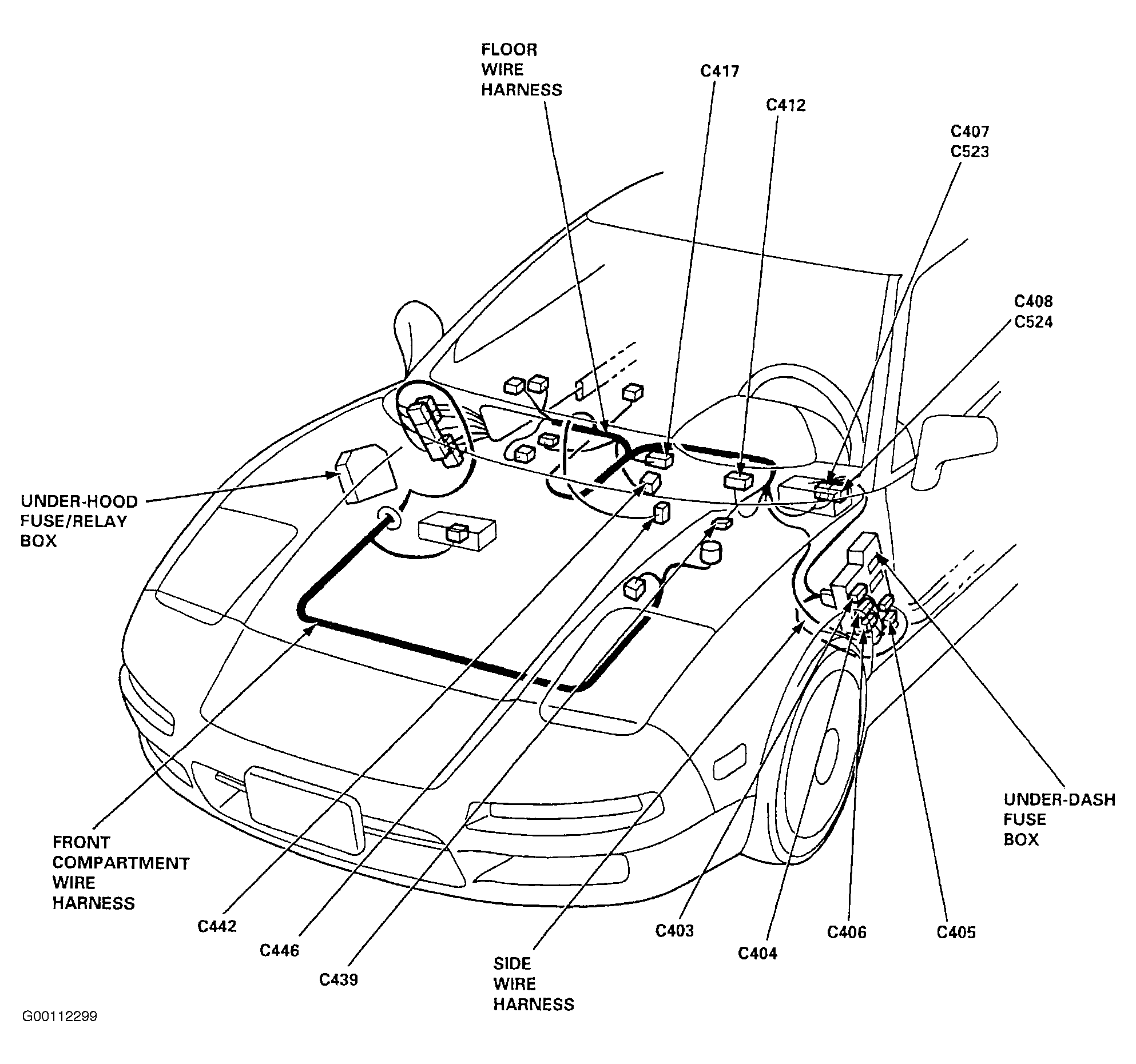

Fig 11: Identifying & Locating Connectors - Front Compartment & Under Dash (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

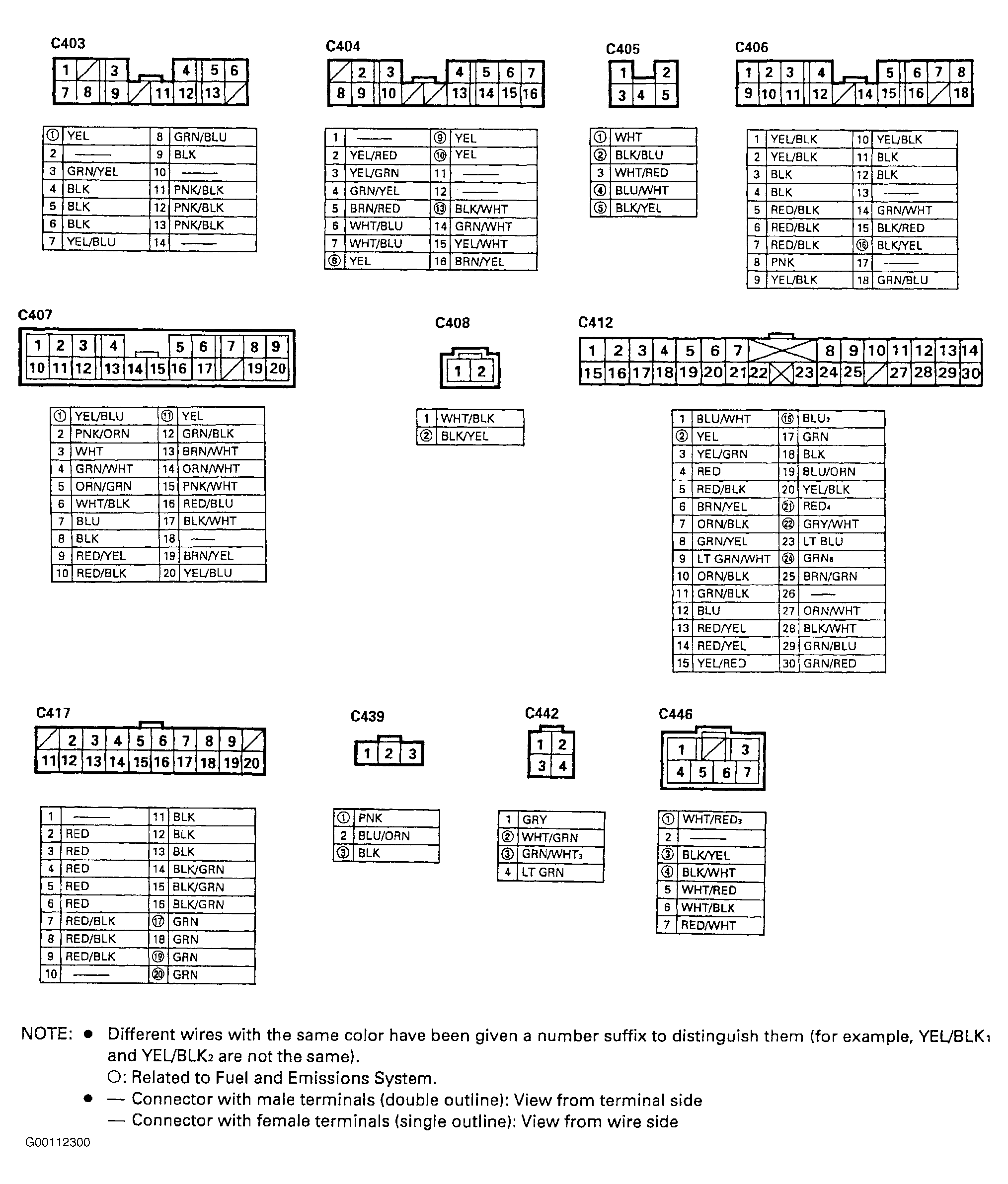

Fig 12: Identifying & Locating Connectors - Front Compartment & Under Dash (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 13: Identifying & Locating Connectors - Front Compartment & Under Dash (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 14: Identifying & Locating Connectors - Front Compartment & Under Dash (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
