Slide motor, Front up-down motor, Rear up-down motor

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
  2. Disconnect the 2P connector from each power seat motor.
    NOTE: All connectors are terminal side of male terminals.

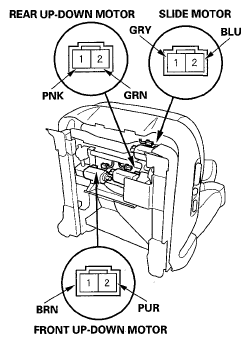

    Fig 1: Identifying 2P Connector
    G05488326Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test each motor by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately.

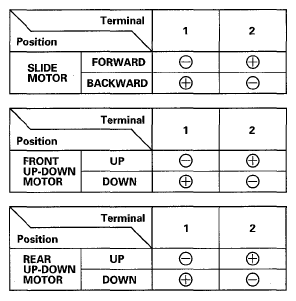

    Fig 2: Terminal Specifications
    G05488327Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the motor does not run or fails to run smoothly, replace the seat linkage assembly (see FRONT SEAT LINKAGE DISASSEMBLY/REASSEMBLY ).
    NOTE: The slide and up-down motors are not available separately because of the part of seat linkage, refer to the seat linkage disassembly/ reassembly (see FRONT SEAT LINKAGE DISASSEMBLY/REASSEMBLY ).
