Engine Mount Control System
>>
Circuit Diagram
Circuit Diagram

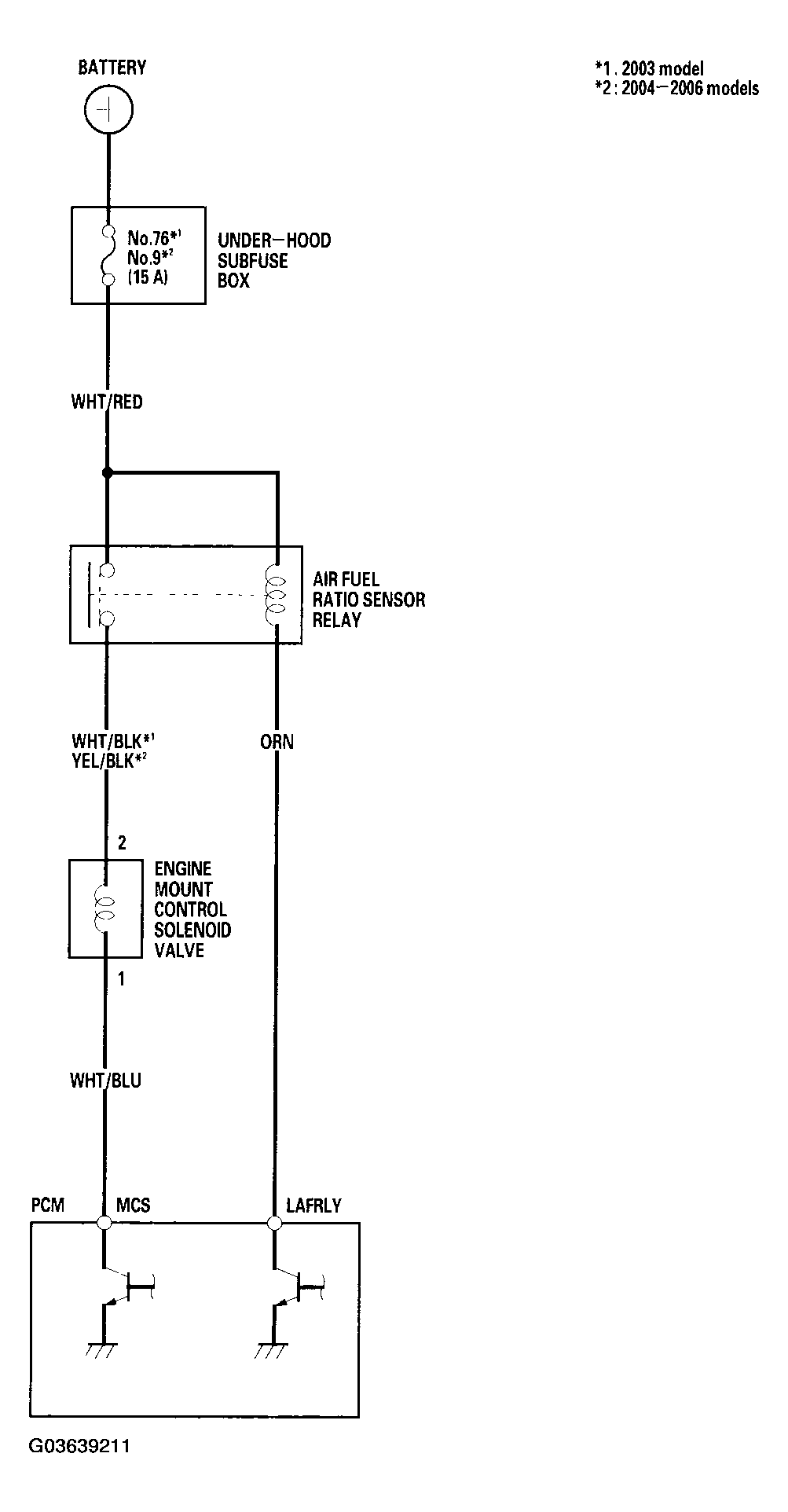

Fig 1: Engine Mount Control System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
