Starter Removal and Installation: Installation

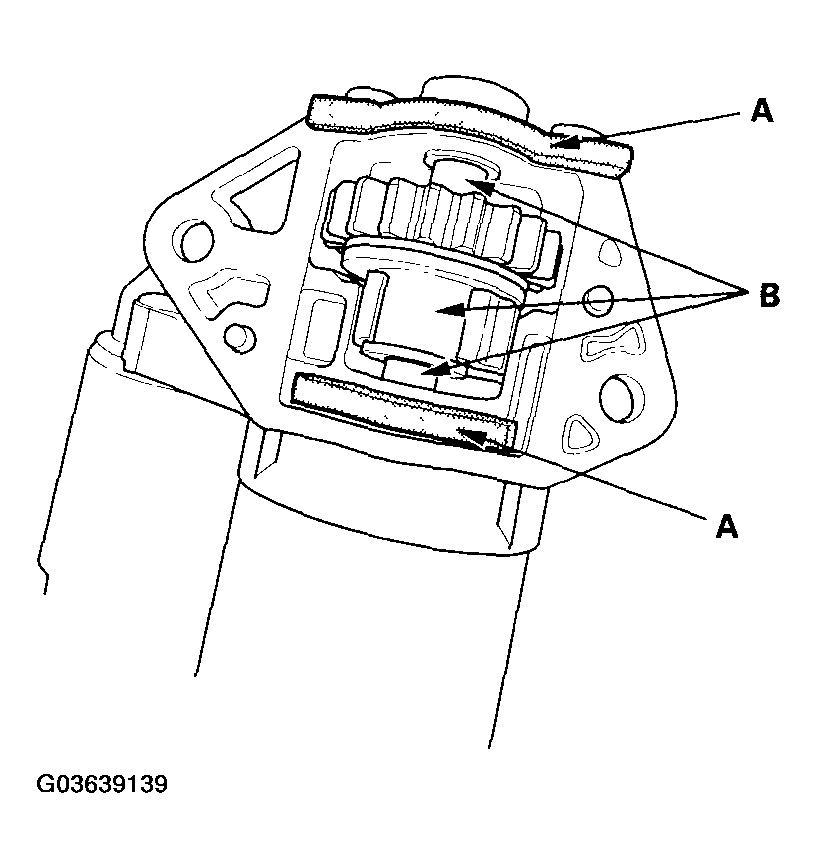

- Check the seals (A) if they are damaged, go to step 2. if they are not damaged, go to step 4.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the seals, and clean the bonding surface with a sponge dampened in alcohol. Be careful not to wipe off the grease from the axis area (B). After cleaning. Keep oil, grease, and water from getting on the clean surface.

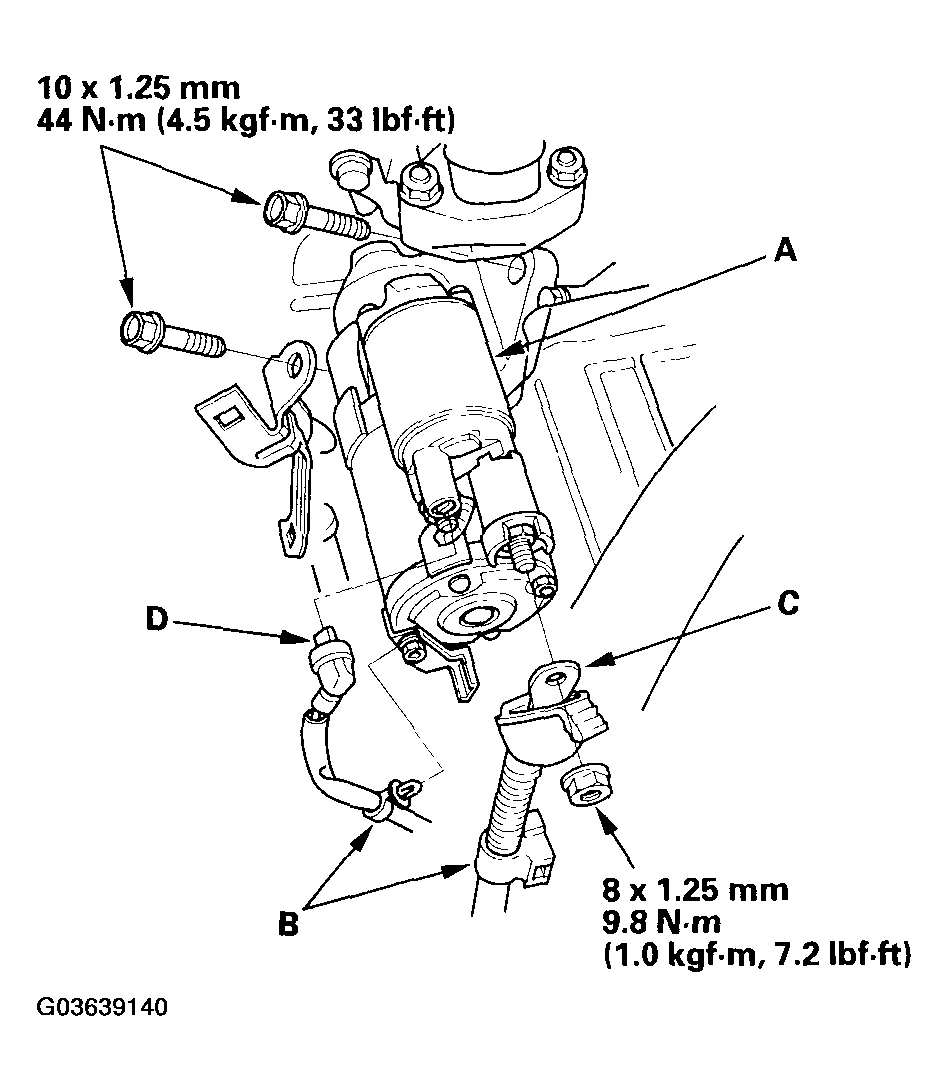

- Install the starter (A), then install the harness clamps (B), and connect the B terminal (C) and BLK/ WHT wire (D). Make sure the crimped side of the B terminal is facing out.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Connect the positive cable to the battery first, then connect the negative cable.
- Start the engine to make sure the starter works property.
- Enter the anti-theft codes for the radio and the navigation system.
- Enter the customer's audio presets.
- Do the power window control unit reset procedure (see RESETTING THE POWER WINDOW CONTROL UNIT
).
- Set the clock.
