Driver's Dashboard Under Cover Removal/Installation

NOTE: Take care not to scratch the dashboard and related parts.

Remove the driver's dashboard under cover (A).
- -1 Turn the lock knob (B) 90°.
- -2 Gently pull down the rear edge to detach the clip and to release the pin (C).
- -3 Pull the cover away to release it from the clip (D), and to release the pin (E) from the holder (F).
- -4 '04-06 models: Disconnect the footwell light connector (G) and ambient light connector (H).

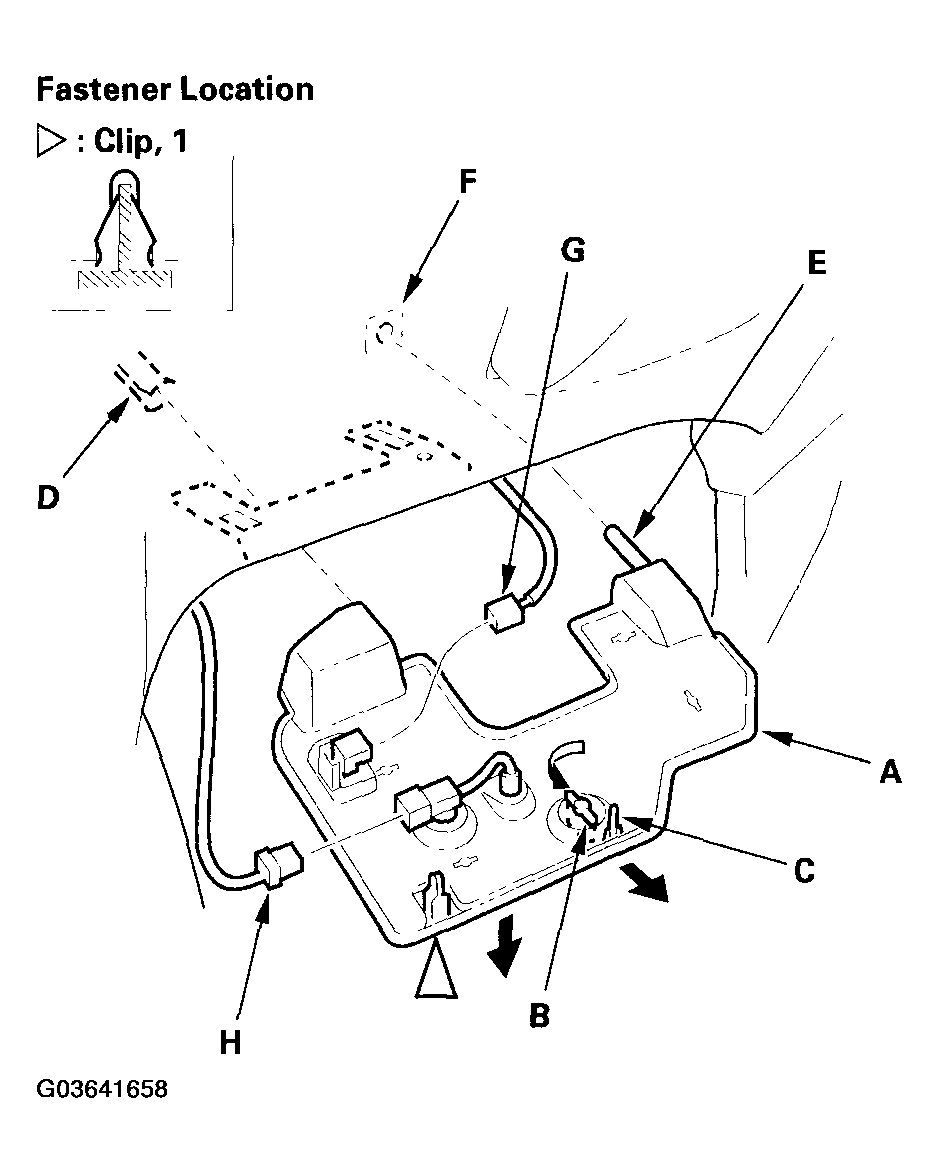

  Fig 1: Removing Driver's Dashboard Under Cover
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the cover in the reverse order of removal, and note these items:
- Release the clip if it's damaged.
- Push the clip portion into place securely.
